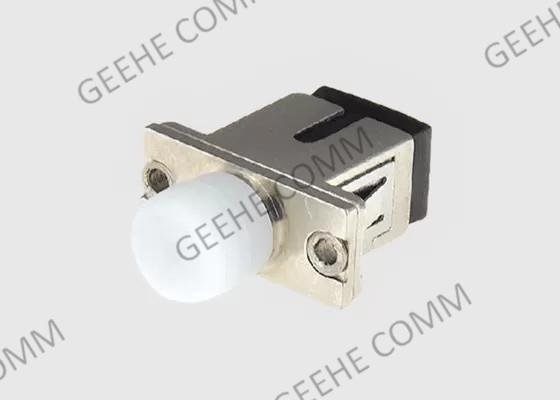

Multimode Polymer Sleeve Metal Flange Fiber Optic Hybrid Adapter
FC-SC simplex
1. Product Overview:
Multimode SC to FC Simplex Coupler - This item provides the link
between Fiber networking devices. This coupler allows for
connecting of similar connector types for short-distance networks
at high speeds. Multimode fiber optical products are used for
short-distance signal transmission. PI Manufacturing provides a
wide selection of fiber adapters at competitive prices. These
adapters allow you to connect various types of optic fibers
together.
2. Optical Cable Adaptor Feature and Benefits:
- Connection Type: SC to FC
- Housing: Metal
- Telecommunication: Simplex
- Data Connection: Multimode
- Sleeve: Polymer
- Style: Square Flange
- Hybrid SC Female to FC Female
3. Fiber Optic Adapter Applications:
- Designed for fiber optic Connectivity
- Telecommunication networks
- Premise installations
- LAN and WAN
- FTTX
- Handle bandwidth-intensive applications
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit |
| Sleeve Material | Ceramic | / |
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB |
| Female | Typ. | ≤ 0.3 | dB |
| Min. | ≤ 0.2 | dB |
| Return Loss | UPC | ≥50 | dB |
| APC | ≥60 | dB |
| PC | ≥35 | dB |
| Insertion Loss Max. | 0.2 | dB |
| ∆ IL | Uniformity | ＜0.2 | dB |
| Durability (1000 times) | ＜0.3 | dB |
| Proof Test | 40N,10 minute | N |
| Insertion And Withdrawal Force | ≤19.6N | N |
| Operating Temperature | -25~+70 | ℃ |
| Storage Temperature | -25~+70 | ℃ |
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 |
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex
D: Duplex | SC
FC
ST
LC
MU | APC
UPC
PC | Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange
N: No Flange | W: With shutter
N: No shutter |
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |
6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back
reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer
box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is
subject to stringent testing standards
4) ISO9001:2015 Certification by SGS
All products have passed ISO9001:2015 System and reached Telcordia
GR-326-Core, GR1209/1221.
