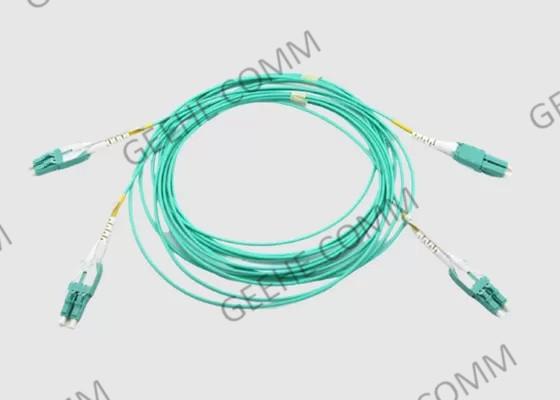

Multimode Duplex LC/LC Uniboot 50 Micron OM4 Aqua Fiber Cable - 2mm
1. Fiber Patch Cord Basic Introduction:
This 50 micron (OM4) laser optimized uniboot fiber optic cable is
made with Corning glass fiber and consists of a duplex LC male
connector on both ends. Its uniboot cable design, short boot
connectors, and round 2mm jacket are ideal for high-density server
room applications. All cables are 100% tested for insertion loss,
return loss, and end-face geometry to provide the optimum data
transmission and network stability. They are used for connections
to the data centers, CATV, fiber test equipment, LAN,
telecommunication networks, FTTx, communication rooms, and fiber
optic communication systems.
Termination: LC Uniboot, SC Uniboot, LC, SC, FC, ST, MTRJ, MTP®/MPO
(Single-mode polishes UPC and APC)
Jacket material: Plenum, Riser,OFNR, and LSZH
Fiber types: Laser optimized 10G OM3, OM2 in 50mm and 62.5, Single
Mode
2. Uniboot Fiber Optic Patch Cord Benefit & Features:
• Push-pull mechanism for best handling and highest packing density
• Stable lever with anti grip design and marking possibility
• Patented (US 8.221.007)
• Sophisticated design for easy termination
• Short rigid length
• Two connections in one SC-shaped adapter
• Polarity flipping without tool
• Compatible to standard (6.25 mm) and mini LC (5.25 mm) adapters
and transceivers
• Low smoke, free of halogen (LSFH) cable
3. Uniboot Patch Cord Applications:
- Telecommunication Networks
- Fiber Optic Communication Networks
- Optical Access Network
- Data Processing Networks
4. Specification&Technology Parameters
| Construction |
| Fiber Count | 2- Fiber Round |
| Cable Jacket Ratings | Plenum (OFNP)
Low Smoke Zero Halogen (LSZH) |
| Fiber Types | Singlemode: OS2 9/125um
Multimode: OM3 50/125um OM4/4+50/125um OM5+ 50/125um |
| Connector Types | Duplex LC Uniboot |
| Jacket Color | OS1/OS2: Yellow OM3: Aqua OM4: Aqua OM4+:Aqua OM5+:Lime Green |
| Physical Properties |
| Cable outside diameter (OD) | 2.0mm |
| Bend radius (min) | 40mm |
| Connector durability | 500 cycles |
| Bend radius (min)(Long- term) | 20mm (40mm) |
| Optical Properties |
| Connector insertion loss | MM: 0.15dB max (Optimized IL) 0.10dB max (Ultra-low IL) 0.25dB max
(Optimized IL) |
| SM: 0.25 dB max ( Optimized IL) |
| Connector return loss | 26dB min (MM) 55dB min (SM) 65dB min (SM/APC) |
| Environmental Properties |
| Storage and shipping temperature | -40℃-+70 ℃ |
| Operating and installation temperature | -40℃-+70 ℃ |
5. Ordering Information
| Code | Fiber Type | Cable Type | Jacket Material | Color | Length (m) |
| P | 3 | OM3 | AR2 | Round 2mm | L | LSZH | Y | Yellow | 1 |
| 4 | OM4 | AX2 | Round 2.4mm | R | OFNR | A | Aqua | 2 |
| 7 | G.657A1 | | | P | OFNP | E | Erika Violet | 3 |
| 8 | G.657A1 | | | | | | | 5 |
| | | | | | | | | 10 |
Legacy ordering information
| Connector End | Mode | Cable Configuration | Cable Colour | Cable Diameter | Cable Length (m) |
| LC to LC | 9 | OS1/OS2 | D | Duplex | Y | Yellow | 2.4mm | 1 |
| 7A1 | G.657A1 | DR | Duplex Riser | A | Aqua | 3.0mm | 2 |
| 7A2 | G.657A2 | DP | Duplex Plenum | P | Purple | | 3 |
| OM3 | OM3 | | | | | | 5 |
| OM4 | OM4 | | | | | | 10 |
6. Options Available
-- LC Custom fiber optic jumper options include.
-- LC/PC (Physical Contact) Polish
-- LC/UPC (Ultra Physical Contact) polish
-- LC/APC (Angled Physical Contact) polish
Jacket: Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens
(LSZH), PVC
Diameter: 0.9mm (900µm), 1.6mm, 1.8mm, 2.0mm, 3.0mm
Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
LC Multimode 62.5/125µm MMF Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM2 Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM3 10Gb Laser Optimized Fiber (Corning
Fiber)
LC Simplex cables or LC Duplex Cables are also available in
optional colors.
LC Standard boot, LC 45° angled boot, LC 90°angled boot, or short
boot options.
Corning Fiber Optic Cable, or Fiber One Fiber.
