1 × 8 SC APC Steel Tube Sc/ Apc Mini Fiber Optical Cable Splitter
Optic Splitter Basic Information :
Geehe Singlemode Fiber Splitters are available from 405nm to
2000nm. Standard fiber splitters have a 50:50 ratio but other
ratios such as 10:90 are also available.

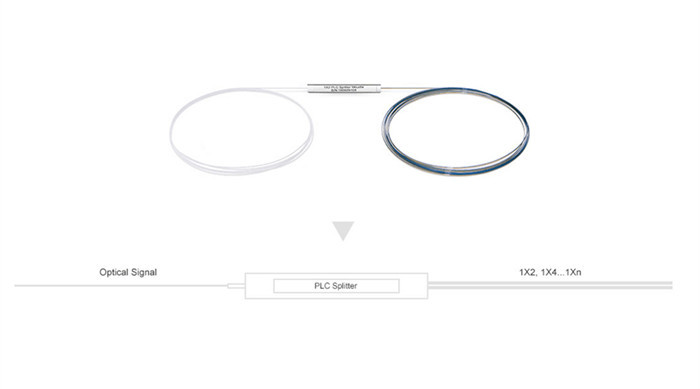

All single-mode fiber splitters use fiber for the wavelength of
use. A stainless steel tube protects the fiber split section and
each arm has a one-meter length of fiber. Fiber ends can be
terminated with SC/UPC or SC/APC connections.
In addition to our standard single-mode single wavelength
Splitters, Geehe has launched a new line of 1×2 and 2×2 single-mode
splitters based on Pure silica fibers with operating wavelengths
covering 1260 to 1650 nm.
Optic Splitter Features& Benefits:
- Passive fiber optic cables assemblies
- SC standard fiber connectors
- Single mode fiber or multimode fiber options
- Splits optical signal for routing to multiple devices or inputs
Operating bandwidth: 1260 - 1650nm
Compact design, suitable for installation in optical equipment
Application&Standard:
- Optical Signal Distribution
- Data Communications
- FTTX Deployment
- FTTH Network
- Passive Optical Networks (PON)
- Measuring System and Laser System
- DWDM and CWDM Systems
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 |
| Operating Wavelength(nm) | 1260~1650 |
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 |
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 |
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 |
| PDL @ 1310/1550 nm (dB) | ≤0.3 |
| Return Loss@ 1310/1551 nm (dB) | ≤-55 |
| Input Power (mW) | 250max |
| Operating Temperature (℃) | -40~+85℃ |
| Storage Temperature (℃) | -40~+85℃ |
| Fiber Type | Corning G657A1 |
Optic Splitter Package Dimensions:
| WxHxD(mm) | Port |
| 60x4x4 | 1x4 | 1x8 | 2x4 | 2x8 |
| 60x12x4 | 1x16 | 2x16 |
| 80x12x6 | 1x32 | 2x32 |
| 100x40x6 | 1x64 |
Ordering Information:
| PLC | AAA | B | CC | D | EE | FF | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber | Input Connector | Output Connector |
