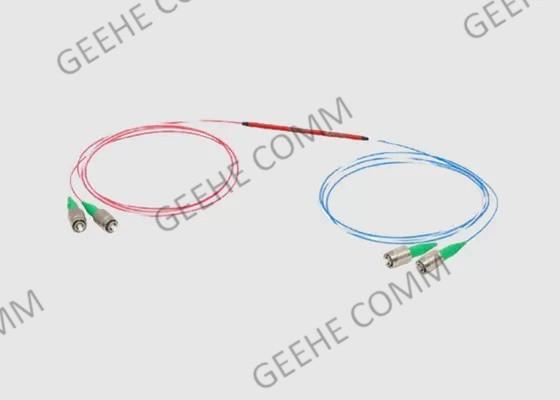

Fiber Optic ST Connector Coupler 1 × 2 Ratios Wideband Optical
Couplers
Optic Coupler Brief Introduces:
Singlemode Couplers 1X2 and 2X2 offer very low insertion loss, low
polarization dependence, and excellent environmental stability.
Accurate coupling ratio's from 50/50 to 1/99 are available with
very tight uniformity. The Singlemode Standard Coupler components
perform power splitting and monitoring functions in all kinds of
optical communication systems.
Geehe's Fiber Couplers with more stability, and widely used by
brands and brand manufacturers, also get Brazil Anatel Certificate,
tapered (FBT) technology, and are fully compliant with Telcordia
GR-1209/1221 standards for network applications.
Fiber Optic Coupler Features& Benefits:
Low Excess Loss
High Stability And High Reliability
Ultra-low PDL and temperature sensitivity
Low insertion loss over entire bandwidth and temperature (typical
IL change <±0.1dB)
- Low PDL
Dual Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A |
| Operating Wavelength(nm) | 1310&1550 |
| Operating Bandwidth(nm) | 1310 ± 40nm,1550 ± 40nm |
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 |
Insertion Loss
(dB) | 50/50 | ≤3.3 | ≤3.5 |
| 40/60 | 3.70~4.40≤2.5 | 3.50~4.60/≤2.8 |
| 30/70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 |
| 20/80 | 6.80~7.40/≤1.2 | 6.50~7.70/≤1.2 |
| 10/90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 |
| 5/95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 |
| 3/97 | 14.60~15.50/≤0.3 | 13.60~16.05/≤0.4 |
| 2/98 | 16.60~17.90/≤0.25 | 15.60~18.20/≤0.3 |
| 1/99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 |
| PDL(dB) | ≤0.1 | ≤0.15 |
| Return Loss(dB) | ≥50 | ≥45 |
| Directivity(dB) | ≥55 |
| Operating Temperature(℃) | -40 ~ +85 |
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium
A: Grade A
X: Customization | 12:1x2
22:2x2 | 35:1310/1550nm | 01: 01:99
02: 02:98
……
50: 50:50 | 1:1 m
x: Customization | 25:250μM Fiber 09:900μM loose fiber | SC: SC/UPC SA: SC/APC
00: no connector | A: A
B: B
C:C |
| Grade | Port number | Operating wavelength | Coupling ratio | Fiber length | Fiber type | Connect type | Dimension |
EX:WBC-P-12-35-50-1-09-0-B
Fiber Optic Coupler Application:
- Mini size
- Low excess loss
- Low PDL and low WDL
- High stability and reliability
- Mini size transmitter/receiver module
- Optical Communication Systems
- CATV
- Testing instruments
- Local Area Networks
