Single Mode LC Connectors ABS Box 1×2 Fused Fiber Optic Couplers
Optic Coupler Brief Introduces:

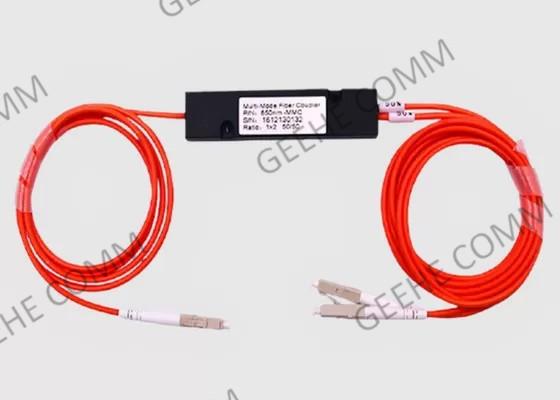

ABS Box type 1×2 Single-mode fused fiber optic coupler is a 1 ×2
FBT splitter module packed in ABS box with ruggedized fiber jackets
of 2mm and up to 3mm with SC / APC or customized fiber connectors
terminated.
The main function of the fusion fiber coupler/ splitter is to
redistribute the input light power as a required splitting ratio.
It employs Fused Biconical Tapered (FBT) technology and is fully
compliant with Telcordia GR-1209/1221 standards for network
applications.
Geehe's Optic Coupler production lines have been put out for more
than 10 years, now the capacity has been increased three times than
before. The machine import Japan branded with the highest
technology, more splits can be chosen.
FIber Optic Coupler Features& Benefits:
- 1×2 fused fiber optic coupler, single-mode
- 1310/1490/1550nm transmission wavelength
- Single window, dua; window, triple window fiber splitter available
- The splitting ratio from 1:99 to 50:50
- 1 input&2 output fibers
- Harnessed up to 2.0mm or 3.0mm diameter
- 1m, 1.5m, or customized cable length
- SC/APC,SC/UPC, LC/UPC, LC/APC, ST/UPC,FC/UPC,FC/APC connectors for
option
- Open-ended (with no connectors terminated) FBT fiber coupler
available
- Less excess loss
- Good directivity
- Low PDL
Three Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A |
| Operating Wavelength(nm) | 1310&1490&1550 |
| Operating bandwidth(nm) | 1310 ± 40nm,1490± 40nm,1550 ± 40nm |
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 |
Insertion Loss
(dB) | 50:50 | ≤3.4 | ≤3.6 |
| 30:70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 |
| 10:90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 |
| 5:95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 |
| 1:99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 |
| PDL(dB) | ≤0.1 | ≤0.1 |
| Return Loss(dB) | ≥55 | ≥45 |
| Directivity(dB) | ≥55 |
| Operating Temperature(℃) | -40 ~ +85 |
Ordering Information:
| WBC- | X- | X2- | 345- | XX- | X- | XX- | XX- | X |
| P: Premium
A: Grade A
X: on request | 12:1x2
22:2x2 | 1310&1490&1550nm | 01: 01:99
05: 05:95
……
50: 50:50 | 1:1 m
x: on request | 25:250μM Fiber 09:900μM Loose Fiber | SC: SC/UPC SA: SC/APC
00:no connector | A: A
B: B
C: C |
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension |
FBT Coupler Compare With PLC Splitter:
| Parameters | FBT Splitter | PLC Splitter |
| Fabrication Method | Two or more pieces of optical fibers are bound together and put on
a fused-taper fiber device. The fibers are then drawn out according
to the output branch and ratio with one fiber being singled out as
the input. | Consists of one optical chip and several optical arrays depending
on the output ratio. The optical arrays are coupled on both ends of
the chip. |
| Operating Wavelength | 1310nm and 1550nm (standard); 850nm (custom) | 1260nm -1650nm (full wavelength) |
| Application | HFC (network of fiber and coaxial cable for CATV); All FTIH
applications. | Same |
| Performance | Up to 1:20– reliable. For larger splits, reliability can become an
issue. | Good for all splits. High level of reliability and stability. |
| Input/Output | One or two inputs with an output maximum of 32 fibers. | One or two inputs with an output maximum of 64 fibers. |
| Package | Steel Tube (used mainly in equipment); ABS Black Module
(Conventional) | Same |
| Input/Output Cable | Bare optical fiber; 0.9mm, 2.0mm, and 3.0mm | Same |
| Package Size | 1×2 to 1×8 smaller size than PLC | More than 1×8, PLC Splitter size is smaller |
| Stability and Reliability | Stability is better | High stability not as FBT Splitter |
FIber Optic Coupler Application:
- FTTx
- Passive Optical Network (PON)
- CATV fiber links
- Test equipment
- EDFA System
