Less MOQ FTTH Dual Window Splitter Ratio LC/UPC 1x2 Fbt Coupler WDM
Basic Information:

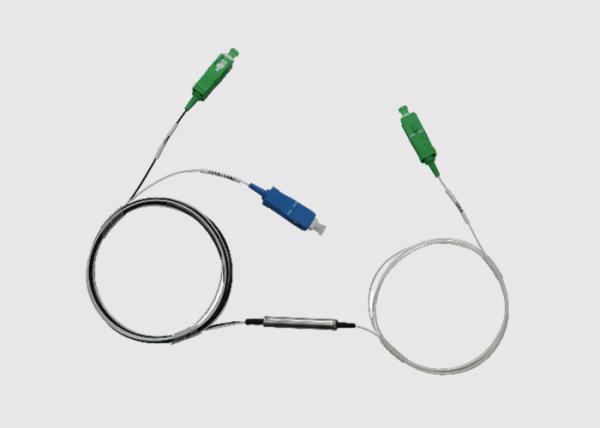

1x2(2x2) Polarization maintaining fused WDM coupler
1x2 PM fused fiber optic couplers allow a single fiber input to be
split into 2 outputs. The PANDA fiber used in these couplers allows
them to provide a high extinction ratio for light launched into the
slow axis of the fiber.
Features.
FBT WDM Benefit&Features:
- Variety of coupling ratios (1x2, 1x4, 1x6, etc)
- High reliability and stability
- Built to customer specification
- SC, LC, FC, ST connector options
- Compatible with LGX rack mount chassis
FBT WDM Benefit&Features:
* GR-1209-CORE Requirements for passive optic components
* GR-1221-CORE Reliability assurance requirements for passive
optical components
* GR-326-CORE Requirements for single-mode optical connectors sand
jumpers assemblies
* TIA-604 Fiber optic connector interpretability standard
* ROHS Directive on the restriction of hazardous substances
WDM Applications:
- Telecommunications networks
- CATV networks
- Local Area Networks (LAN)
- Passive Optical Networks (PON)
- WDM and CWDM
- Datacenter
Specifications& Technology Parameters:
| Fiber Type(dB) | Corning HI1060flex or OFS BF05635-02 | SMF-28e |
| Operating Wavelength(nm) | 980 & 1550 | 1060 & 1550 | 1310 & 1550 | 1480 & 1550 |
| Operating Bandwidth(nm) | ±10/20 | ±15 | ±15 |
| Grade | P | A | P | A | P | A | P | A |
| Insertion Loss(dB) | ≤0.15 | ≤0.25 | ≤0.30 | ≤0.40 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.35 |
| Isolation(dB) | ≥20 | ≥18 | ≥20 | ≥18 | ≥25 | ≥18 | ≥25 | ≥18 |
| PDL(dB) | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.1 | ≤0.1 |
| Directivity(dB) | ≥55 |
| Operating Temperature(℃) | -40 ~ +85 |
* The above specification is excluding the connector
* Other specification can be made on customer requires
Ordering Information:
| WDM- | N- | XX- | XX- | X- | XX- | XX- | X |
| | 95:980&1550nm 135:1310&1550nm 65:1060&1550nm
45:1480&1550nm | 01: :SMF-28e
02: HI1060flex,
03: OFS BF05635-02 | 1:1m
X:customization | 25:250μM Fiber
09:900μM loose Fiber 20: 2mm cable
30: 3mm cable | SC:SC/UPC
SA:SC/APC
......
00:No connector | A: A
B: B
C: C |
| Grade | Operation Wavelength | Fiber Type | Fiber Length | Pigtail Type | Connect Type | Dimension |
WDM Cable Type:
1. Single-mode fibers allow one mode to propagate.
2. Multimode fibers support the propagation of multiple modes.
3. Wavelength range is the range of wavelengths the WDM will
operate in.
4.Channel spacing is the center-to-center difference in frequency
between neighboring channels. Two hundred GHz corresponds to .4 nm
spacing, 100 GHz corresponds to .2 nm spacing, and 50 GHz
corresponds to .1 nm spacing.
5. Number of channels is the number of channels the device has to
send information. This number can range from 4 to 160 with design
enhancements adding more channels.
Package
Original Carton Package;
As customers‘ requirement.
Wuhan Geehe Comm Service:
-- Continuous improvement; accepting new challenges
-- Innovating new processes, and creating new products for the
benefit of our customers
-- Free samples for testing
-- Factory inspection, also accept the third party inspect
-- Younger Team
