Grade P 1310nm To 1550nm 1×2 Three Window 50/50 Coupler Fiber Optic
Cable
Optic Coupler Brief Introduces:
Geehe's Single-mode Three Window Coupler is designed for
applications in PON, CATV and FTTH systems. The TWC Coupler, with
wavelength windows at 1310nm/1490nm/1550nm, is built by asymmetric
coupling techniques and features low excess loss and high
reliability and stability.
The TWC (Three Window Coupler) has compact package size, low
insertion loss, wide bandwidth, and high reliability in
performance. These couplers are designed for applications in
compact optical modules, fiber sensors, and optical testing
instruments.

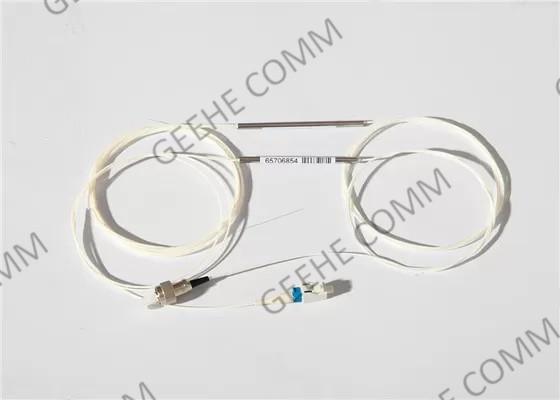

Fc to LC fiber-coupled coupler, 1×2 Three Window suitable for
1310nm to 1550nm wavelength.
1× 2,2×2 FIber Optic Coupler Features& Benefits:
- Low excess loss
- Low PDL
- Three operating windows
- High stability and reliability
- Ultra-compact size: Mini size
- Low wavelength dependence
- Excellent Environmental Stability
Three Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A |
| Operating Wavelength(nm) | 1310&1490&1550 |
| Operating bandwidth(nm) | 1310 ± 40nm,1490± 40nm,1550 ± 40nm |
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 |
Insertion Loss
(dB) | 50:50 | ≤3.4 | ≤3.6 |
| 30:70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 |
| 10:90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 |
| 5:95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 |
| 1:99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 |
| PDL(dB) | ≤0.1 | ≤0.1 |
| Return Loss(dB) | ≥50 | ≥45 |
| Directivity(dB) | ≥55 |
| Operating Temperature(℃) | -40 ~ +85 |
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 345- | XX- | X- | XX- | XX- | X |
| P: Premium
A: Grade A
X: on request | 12:1x2
22:2x2 | 1310&1490&1550nm | 01: 01:99
05: 05:95
……
50: 50:50 | 1:1 m
x: on request | 25:250μM Fiber 09:900μM Loose Fiber | SC: SC/UPC SA: SC/APC
00:no connect | A: A
B: B
C:C |
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension |
EX:WBC-P-12-345-50-1-25-00-A
1 ×2 FIber Optic Coupler Application:
FTTx Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
FBT Fiber Optic Coupler Compare with PLC :
| Parameters | FBT Splitter | PLC Splitter |
| Fabrication Method | Two or more pieces of optical fibers are bound together and put on
a fused-taper fiber device. The fibers are then drawn out according
to the output branch and ratio with one fiber being singled out as
the input. | Consists of one optical chip and several optical arrays depending
on the output ratio. The optical arrays are coupled on both ends of
the chip. |
| Operating Wavelength | 1310nm and 1550nm (standard); 850nm (custom) | 1260nm -1650nm (full wavelength) |
| Application | HFC (network of fiber and coaxial cable for CATV); All FTIH
applications. | Same |
| Performance | Up to 1:20– reliable. For larger splits, reliability can become an
issue. | Good for all splits. High level of reliability and stability. |
| Input/Output | One or two inputs with an output maximum of 32 fibers. | One or two inputs with an output maximum of 64 fibers. |
| Package | Steel Tube (used mainly in equipment); ABS Black Module
(Conventional) | Same |
| Input/Output Cable | Bare optical fiber; 0.9mm, 2.0mm, and 3.0mm | Same |
| Package Size | 1×2 to 1×8 smaller size than PLC | More than 1×8, PLC Splitter size is smaller |
| Stability and Reliability | Stability is better | High stability not as FBT Splitter |
