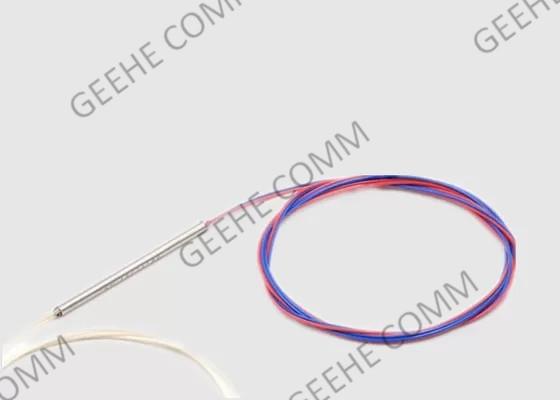

1×2/2×2 Multi-mode 62.5/125um Broadband Fiber Optic Rotating
Coupler
Optic Coupler Brief Introduces:
A Fiber Coupler is an Optical Fiber device with one or more input
fibers and one or several output fibers, with low insertion loss,
low polarization dependence, and excellent environmental stability.
Accurate coupling ratio's from 50/50 to 1/99 are available with
very tight uniformity. The multi-mode Standard Coupler components
perform power splitting and monitoring functions in all kinds of
the optical communication systems.
Other wavelength-sensitive couplers are used as multiplexers in
wavelength division multiplexing (WDM) telecom systems to combine
several input channels with different wavelengths, or to separate
channels.
1× 2,2×2 FIber Optic Coupler Features& Benefits:
- Fused single or dual window wideband fiber 1x2 (2x2) couplers
- Fused single-mode wavelength division multiplexers
- 3- or 4-port polarization-insensitive miniature circulators
- Excellent optical characteristics over a wide wavelength range
- Multi-mode single-window wideband fused fiber couplers
- Highly stable for multiport optical signal splitting
Dual Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A |
| Operating Wavelength(nm) | 1310&1550 |
| Operating Bandwidth(nm) | 1310 ± 40nm,1550 ± 40nm |
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 |
Insertion Loss
(dB) | 50/50 | ≤3.3 | ≤3.5 |
| 40/60 | 3.70~4.40≤2.5 | 3.50~4.60/≤2.8 |
| 30/70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 |
| 20/80 | 6.80~7.40/≤1.2 | 6.50~7.70/≤1.2 |
| 10/90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 |
| 5/95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 |
| 3/97 | 14.60~15.50/≤0.3 | 13.60~16.05/≤0.4 |
| 2/98 | 16.60~17.90/≤0.25 | 15.60~18.20/≤0.3 |
| 1/99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 |
| PDL(dB) | ≤0.1 | ≤0.15 |
| Return Loss(dB) | ≥50 | ≥45 |
| Directivity(dB) | ≥55 |
| Operating Temperature(℃) | -40 ~ +85 |
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium
A: Grade A
X: Customization | 12:1x2
22:2x2 | 35:1310/1550nm | 01: 01:99
02: 02:98
……
50: 50:50 | 1:1 m
x: Customization | 25:250μM Fiber 09:900μM loose fiber | SC: SC/UPC SA: SC/APC
00: no connector | A: A
B: B
C:C |
| Grade | Port number | Operating wavelength | Coupling ratio | Fiber length | Fiber type | Connect type | Dimension |
EX:WBC-P-12-35-50-1-09-0-B
1 ×2 FIber Optic Coupler Application:
- Long-haul telecommunication
- Mini size transmitter/receiver module
- Optical communication system
- Testing instruments
- FTTH, LAN, PON, and Optical CATV
- Optical fiber test equipment
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back
reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer
box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is
subject to stringent testing standards
4) Fast Delivery
With skilled and stable workers, all the order turnover is fast
than the competitors
5) Factory Audit
We cooperate with famous brands and Japanese customers, with 15
years of factory inspection experience and be familiar with the
whole inspect process by SGS
6) Oem New Product
We have R&D team service for high- level Oem service, also can
together with the customer to develop new products.
