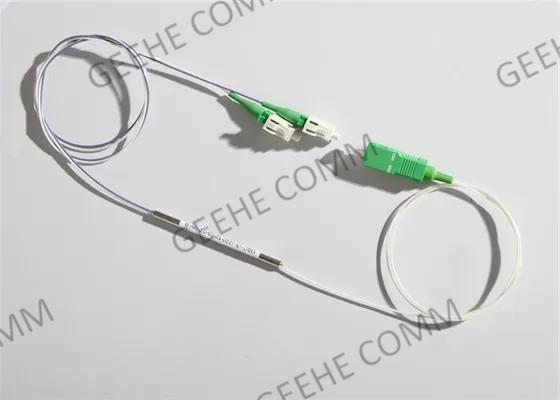

MxN Single Mode Steel Tube Fiber Optic Y Coupler With LC/SC/FC
Optic Coupler Brief Introduces:
A Single-Mode Wideband Couplers have 80nm bandwidth, compared to
40nm of standard fiber optic couplers. This product has a very low
excess loss, high-temperature stability, high precision, and
smaller sizes.
The coupling ratio can be specified. Couplers working at a center
wavelength other than 1550nm or 1310nm can also be provided, more
Split Ratio can be available:50:50
/40:60/30:70/20:80/10:90/5:95/1:99, etc.
1× 2 Fiber Optic Coupler Features& Benefits:
- Low loss&Low WDL
- Ultra-low PDL
- Ultra-wide operation bandwidth +/-80nm
- High directivity
- Mini-size package
- Dual operating window
Dual Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A |
| Operating Wavelength(nm) | 1310&1550 |
| Operating Bandwidth(nm) | 1310 ± 40nm,1550 ± 40nm |
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 |
Insertion Loss
(dB) | 50/50 | ≤3.3 | ≤3.5 |
| 40/60 | 3.70~4.40≤2.5 | 3.50~4.60/≤2.8 |
| 30/70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 |
| 20/80 | 6.80~7.40/≤1.2 | 6.50~7.70/≤1.2 |
| 10/90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 |
| 5/95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 |
| 3/97 | 14.60~15.50/≤0.3 | 13.60~16.05/≤0.4 |
| 2/98 | 16.60~17.90/≤0.25 | 15.60~18.20/≤0.3 |
| 1/99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 |
| PDL(dB) | ≤0.1 | ≤0.15 |
| Return Loss(dB) | ≥50 | ≥45 |
| Directivity(dB) | ≥55 |
| Operating Temperature(℃) | -40 ~ +85 |
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium
A: Grade A
X: Customization | 12:1x2
22:2x2 | 35:1310/1550nm | 01: 01:99
02: 02:98
……
50: 50:50 | 1:1 m
x: Customization | 25:250μM Fiber 09:900μM loose fiber | SC: SC/UPC SA: SC/APC
00: no connector | A: A
B: B
C:C |
| Grade | Port number | Operating wavelength | Coupling ratio | Fiber length | Fiber type | Connect type | Dimension |
EX:WBC-P-12-35-50-1-09-0-B
1×2 Fiber Optic Coupler Application:
- FTTx Systems
- LAN, WAN and Metro Networks
- Long-haul telecommunication
- Mini sizes transmitter/receiver module
- Optical communication system
