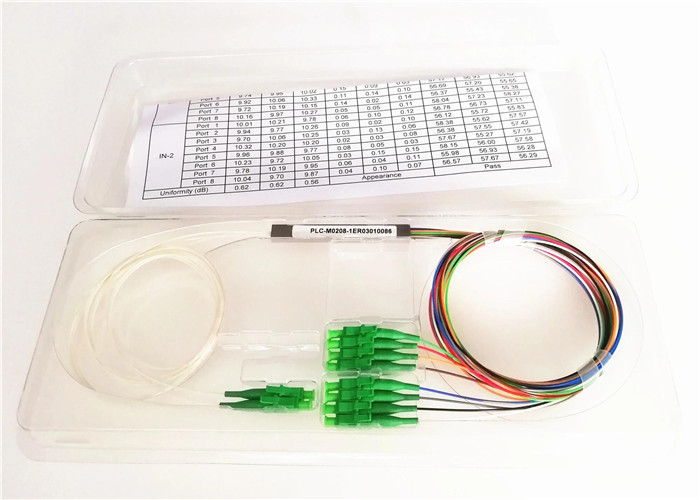

Steel Tube Bare Fiber 250μm 2x8 PLC Fiber Splitter Without Connector

Basic Information :

2x8 PLC Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument, and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and needs a complete protection design on carrying box body and device.

Connectorized Bare PLC Splitters available pre-terminated with LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.

Bare Fiber PLC Features&Benefit:

• 2x8 bare splitter, unconnectorized
• High-Quality PLC design features a protective metal casing around the fibers
• PLC splitting mechanism divides the input signal into equal parts across all output fibers
• 900µm loose tube fiber for easy stripping, splicing or terminating
• Compact design, suitable for installation in optical equipment Passive Optical Networks (PON)
• Operating bandwidth: 1260 - 1650nm
• High reliability and stability, Telecordia GR-1221/1209 compliant

Application&Standard:

• Optical Signal Distribution
• Data Communications
• Lan and CATV System
• FTTX Deployment
• FTTH Network
• DWDM and CWDM Systems
• Measuring System and Laser System

Specification& parameters

PLC Splitter Package Dimensions:

Ordering Information:

Geehe Comm Service:

• Provide the highest quality of products
• Continuous improvement; accepting new challenges
• Innovating new processes, and creating new products for the benefit of our customers
• Consultative service and strive to ensure a positive and productive experience
• Efficient use of all transportation modes and transit times
• Greater visibility and real-time information

Who is Geehe Comm?

Geehe Comm was founded in 2006, and we have been in the Passive Optics field for more than 15 years.

We have previously focused on domestic trade OEM service for Brands in China and eventually achieved the industry's Top ten annual sales of more than 500 million.

Also OEM service for American and European brands from the 2016 year.

We have seen that today there are also many factories and wholesalers internationally. However, their level of craftsmanship and testing are still stuck in a few years ago.

In fact, the production equipment of testings has been upgraded in recent years, and Geehe Comm hopes our advanced technology can inject fresh blood into this market.

Consumers deserve a better Fiber patch cord.
