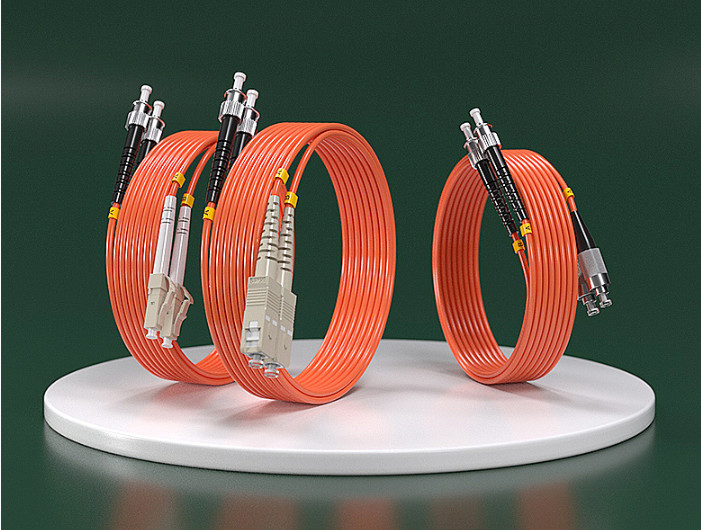

Multimode Duplex PVC jacket LC to ST OM1 Fiber Jumper Cable 1 meter
1. Fiber Patch Cord Basic Introduction:
The LC to ST fiber cables are all tested for 100% functionality and
guaranteed compatible for outstanding network performance.
We offer patch cords, fiber jumpers, and fiber cables up to 50
meters in length. This particular cable is an LC to ST Multimode
Duplex Fiber Optic Cable that's 1 meter long.
Geehe fibre patch cords can be made of similar outer diameter as
the standard fibre patch cords,can be with different jacket colors
and jacket types such as HDPE /OFNR/ LSZH and others.
2. Fiber Optic Patch Cord LC To ST Benefit & Features:
- Convenient for high-security application
- High tensile strength
- Available in Singlemode and Multimode type
- Low insertion loss and excellent back reflection
- Available with a variety of connectors like FC, SC, ST, LC, and
others
- PC, UPC, and APC are available depending on the connector type
- Cables are fire retardant according to IEC Standard 60332-1
- Produced and tested according to GR-326-CORE & TIA-568-C.3 Standard
3. LC To ST Patch Cord Applications:
- Cross-connect patching
- Backbone application in building
- Termination enclosure for equipment patching
- Equipment to equipment patching
- UPC (Ultra Physical Contact) Connector
- Optical Amplifiers
4. Specification&Technology Parameters
| Parameters | Value |
| Connector Type | LC/UPC,LC/UPC |
| Center Wavelength(nm) | 1310 or 1550 |
| Max.Insertion Loss(dB) | 0.3 |
| Min.Extinction Ratio(dB) | 23 |
| Min.Return Loss(UPC) (dB) | 55 |
| Min.Return Loss(APC) (dB) | 65 |
| Key Orientation | Slow Axis |
| Axis Alignment(deg) | ±3 |
| Operating Temperature(℃) | -20~+70 |
| Storage Temperature(℃) | -40~+85 |
| FIber Type | PM Panda Fiber |
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER
is 2dB lower.
* The default connector key is aligned to the slow axis.
5. Fiber patch cord LC Specification& Technology Parameter:
| Parameter | Unit | Index |
| End-Face Type | | PC | UPC | APC |
| IL | dB | SM: ≤0.3；MM ≤0.1 |
| Repeatability | dB | ≤0.1 |
| interchangeability | dB | ≤0.2 |
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Without APC connector) |
| Mating Times | | ＞1000 |
| Operating Temperature | ℃ | -40~ +80 |
* EX:OFC-D-LA-LA-09-1-1.0
6. More connectors to be matched
