Customized Singlemode DWC Fiber Optic Coupler 2 ×2 WIth LC
Connector
Optic Coupler Brief Introduces:
Single-Mode Wideband Couplers have 80nm bandwidth, compared to 40nm
of standard fiber optic couplers. This product has a very low
excess loss, high-temperature stability, high precision, and
smaller sizes.
The coupling ratio can be specified. Couplers working at a center
wavelength other than 1550nm or 1310nm can also be provided, more
Split Ratio can be available:50:50
/40:60/30:70/20:80/10:90/5:95/1:99, etc.
2× 2 Fiber Optic Coupler Features& Benefits:
1) Low loss&Low WDL
2) Ultra-low PDL
3) Ultra wide operation bandwidth +/-80nm
4) High directivity
5) Mini-size package
6) Dual operating window
Dual Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A |
| Operating Wavelength(nm) | 1310&1550 |
| Operating Bandwidth(nm) | 1310 ± 40nm,1550 ± 40nm |
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 |
Insertion Loss
(dB) | 50/50 | ≤3.3 | ≤3.5 |
| 40/60 | 3.70~4.40≤2.5 | 3.50~4.60/≤2.8 |
| 30/70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 |
| 20/80 | 6.80~7.40/≤1.2 | 6.50~7.70/≤1.2 |
| 10/90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 |
| 5/95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 |
| 3/97 | 14.60~15.50/≤0.3 | 13.60~16.05/≤0.4 |
| 2/98 | 16.60~17.90/≤0.25 | 15.60~18.20/≤0.3 |
| 1/99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 |
| PDL(dB) | ≤0.1 | ≤0.15 |
| Return Loss(dB) | ≥50 | ≥45 |
| Directivity(dB) | ≥55 |
| Operating Temperature(℃) | -40 ~ +85 |
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium
A: Grade A
X: Customization | 12:1x2
22:2x2 | 35:1310/1550nm | 01: 01:99
02: 02:98
……
50: 50:50 | 1:1 m
x: Customization | 25:250μM Fiber 09:900μM loose fiber | SC: SC/UPC SA: SC/APC
00: no connector | A: A
B: B
C:C |
| Grade | Port number | Operating wavelength | Coupling ratio | Fiber length | Fiber type | Connect type | Dimension |
EX:WBC-P-12-35-50-1-09-0-B
2×2 FIber Optic Coupler Application:
FTTx Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
Optical communication system
Wuhan Geehe Service:

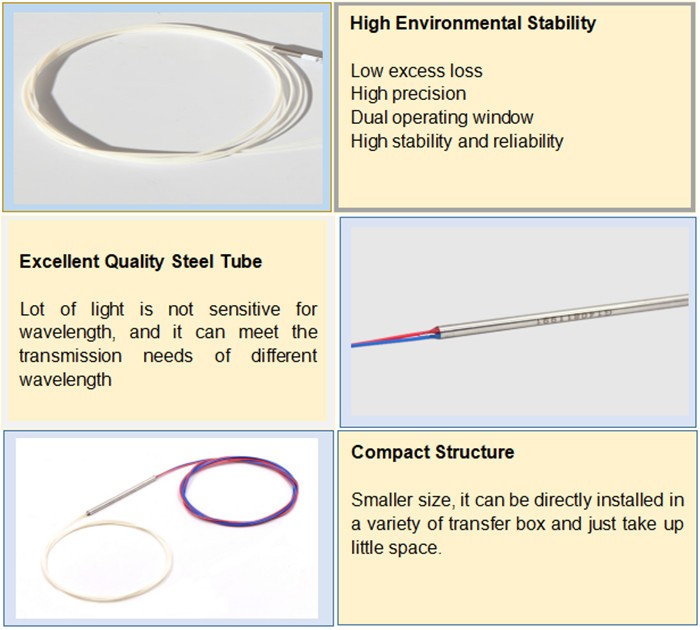

1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back
reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer
box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is
subject to stringent testing standards
4) Fast Delivery
With skilled and stable workers, all the order turnover is fast
than the competitors
5) Factory Audit
We cooperate with famous brands and Japanese customers, with 15
years of factory inspection experience and be familiar with the
whole inspect process by SGS
