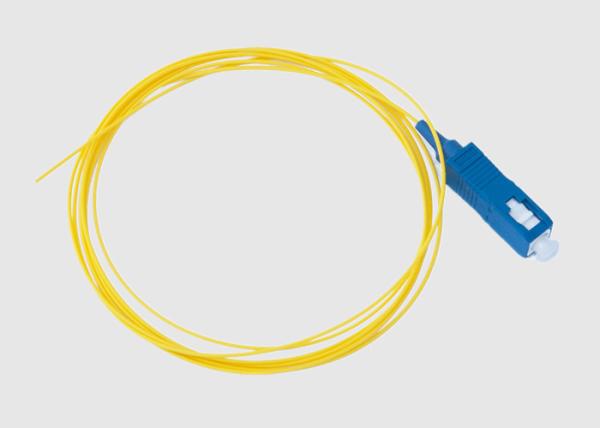

Simplex SC/APC 9/125 Single Mode Fiber Optic Pigtail 0.9 mm PVC
Outer Jacket
Basic Information:
SC /APC Fiber optic pigtails provide a fast way to make
communication devices in the field. The OS2 fiber optic cable
terminated with SC connector on one end, unterminated on the other
end. For use in fusion splicing.
They are designed, manufactured, and tested according to protocol
and performance dictated by the industrial standards, which will
meet your most stringent mechanical and performance specifications.
Features And Benefits of SC Pigtails
1.Superior qualified standard PC, APC, UPC, SPC polishing
2.Single-mode (9125) or multi-mode (50/125 or 62.5/125) fiber
available
3.FC, SC, LC, MU, ST, MT-RJ, etc connector
4.Available in fiber bunch, ribbon fan-out, pigtail available
5.Meets ISO9001, ROHS, and Bell core GR 326-core standards
6.Customized specifications are welcomed
Applications of SC/APC Single Mode Pigtails:
- Data processing networks
- Fiber CATV
- Fiber test equipment
- Wide area networks (WAN)
- Local Area Networks (LAN)
- Fiber-to-the-Home (FTTX)
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) |
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 |
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 |
| IL(dB) | ≤0.3 | ≤0.1 |
| Cable Type | Simplex, Duplex, Fan-Out |
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI,
ESCON etc. |
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 |
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 |
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 |
| Mating Times | >1000 |
| Anti-tensile Force (N) | >70 |
| Temperature Range (℃) | -40~+80 |
SC/APC Single Pigtails Specification:
| Parameter | Unit | Index |
| End-Face Type | | PC | UPC | APC |
| IL | dB | SM: ≤0.3；MM ≤0.1 |
| Repeatability | dB | ≤0.1 |
| Interchangeability | dB | ≤0.2 |
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) |
| Mating Times | | ＞1000 |
| Operating Temperature | ℃ | -40~ +80 |
SC Ordering Information:
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: Simplex D: Duplex | SA:SC/APC SC:SC/UPC SP:SC/PC | SA:SC/APC SC:SC/UPC SP:SC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m
1.0:1.5m
10:10.0m |
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
Typical conectorizaciones are:
LC
LC/APC
SC
FC
ST
