APC Simplex 9/125um 3.0MM ST Fiber Optic Pigtail

Single Mode APC Simplex 3.0MM 9/125um ST Pigtail Connector Fiber Optic Cable

Basic Information:

ST/APC Fiber Pigtail with ST type connectors, we also offer different connecters.

Single Mode ST Pigtail has three kinds of wavelengths, 1310nm, 1490nm, and 1550nm, the transmission distance is 10km and 40km respectively.

Single Mode ST Pigtail uses metal sleeves to protect in outside, and a dust cap to protect the fiber ferrule, ST/APC Fiber Optic Pigtail has been a favorite for a variety of applications, cost-effectiveness, ease in termination, and low-loss connectivity.

APC Fiber Pigtail insertion loss is no more than 0.5dB, and the return loss is generally less than 45dB.

APC Simplex 9/125um 3.0MM ST Fiber Optic Pigtail

Features And Benefits of LC Pigtails

Fire Performance - LSZH applications flame resistance IEC 60332-1
Ferrule Material - Full zirconia
Insertion Loss - Max. 0.3dB typical 0.2dB
UPC polish as default
Free Multimode ST Pigtails sample in stock
Repetitive good high return loss
Acceptable quality 100 percent test
Acceptable customization
Safety of shipment

Applications of ST /APC Single Mode Pigtails:

Optical access network
Data processing networks
Premise installations
Telecommunication networks
Communication networks
CATV, LAN, WAN, Test &Measurement

APC Simplex 9/125um 3.0MM ST Fiber Optic Pigtail

Specification &Technology Parameters:

Item	SM (Single-Mode)			MM (Multimode)
Fiber Cable Type	G625D/G655/G6571A/G657A2			OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125			62.5/125	50/125
IL(dB)	≤0.3			≤0.1
Cable Type	Simplex, Duplex, Fan-Out
Connector Type	LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc.
Cable OD (um)	0.9/1.6/1.8/2.0/2.4/2.8/3.0
End-face Type	PC	UPC	APC	UPC	UPC
Retun Loss(dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2		<0.3	<0.15
Interchangeability (dB)	<0.1		<0.15	<0.1
Mating Times	>1000
Anti-tensile Force (N)	>70
Temperature Range (℃)	-40~+80

ST/APC Single Pigtails Specification:

Parameter		Unit	Index
End-Face Type			PC	UPC	APC
IL		dB	SM: ≤0.3; MM ≤0.1
Repeatability		dB	≤0.1
Interchangeability		dB	≤0.2
RL	SM	dB	≥45	≥50	≥60
	MM	dB	≥36(Exclusive APC Connector )
Mating Times			＞1000
Operating Temperature		℃	-40~ +80

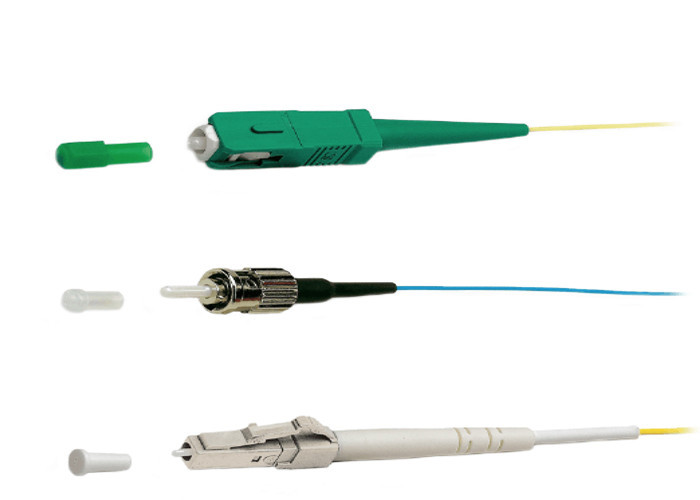

More Connectors Of Fiber Optic Pigtails:
