OM3 Pigtail 2mm Multimode PVC(OFNR) Cable Type SC Fiber Pigtail
Connector
Basic Information:
SC- APC optic patch cables are commonly used patch cords due to
good durability and low cost. The push-pull design of the
connectors is ideal for limited space requirements.

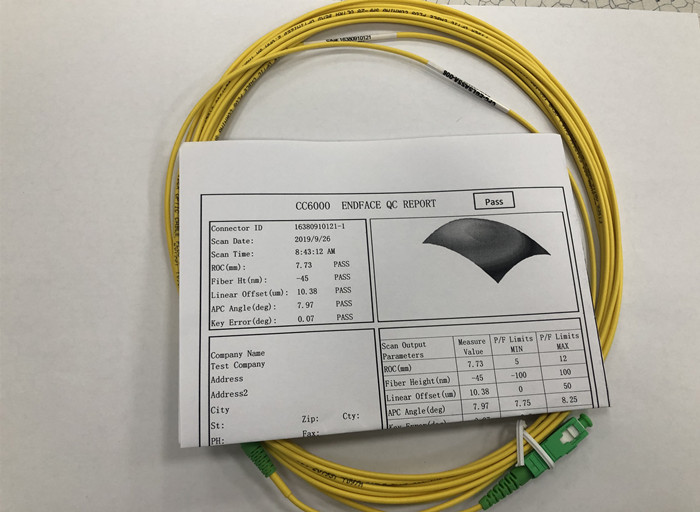

Geehe's pigtails are characterized by low insertion loss. They use
the highest quality ferrules. Each patchcord passes individual
quality control (inspection of surfaces and measurement of
transmission parameters - insertion and return loss).
OM3 standard provides higher data throughput over greater distances
than its predecessors. The transmission speed of 10 Gbps is
possible at distances up to 550 m, and higher speeds, such as 40
Gbps and 100 Gbps can be reached at 100 meters (OM1 and OM2
standards do not allow for such fast rates).
Features And Benefits of SC Pigtails
- Plastic molded rectangular body
- Low-cost compact design
- Available in both Singlemode and Multimode type
- Accurate alignment through the ceramic ferrule
- Stable against mechanical or environmental shock
- Low insertion loss and excellent back reflection
- Fiber Network (Single-End Pigtails, Indoor/Outdoor Riser-Rated)
- Meets Telcordia/ IEC standards
Applications of SC/APC Single Mode Pigtails:
- Suitable for fiber optic patch panel
- Telecommunication networks
- communication networks
- CATV, LAN, WAN, Test &Measurement
- Fiber Optic Module
- Optic Exchange Box
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) |
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 |
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 |
| IL(dB) | ≤0.3 | ≤0.1 |
| Cable Type | Simplex, Duplex, Fan-Out |
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI,
ESCON etc. |
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 |
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 |
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 |
| Mating Times | >1000 |
| Anti-tensile Force (N) | >70 |
| Temperature Range (℃) | -40~+80 |
SC/APC Single Pigtails Specification:
| Parameter | Unit | Index |
| End-Face Type | | PC | UPC | APC |
| IL | dB | SM: ≤0.3；MM ≤0.1 |
| Repeatability | dB | ≤0.1 |
| Interchangeability | dB | ≤0.2 |
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) |
| Mating Times | | ＞1000 |
| Operating Temperature | ℃ | -40~ +80 |
SC Ordering Information:
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: Simplex D: Duplex | SA:SC/APC SC:SC/UPC SP:SC/PC | SA:SC/APC SC:SC/UPC SP:SC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m
1.0:1.5m
10:10.0m |
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
Benefits to our customers include:
- Expedited order fulfillment
- Proactive management of freight flows
- Increased flexibility and control
- Efficient use of all transportation modes and transit times
- Greater visibility and real-time information
- Reduced risks and disruptions
- Eliminate waste through our continuous improvement process
Packing:
One piece per PE bag with stick label (we could add customer's logo
in the label.)
