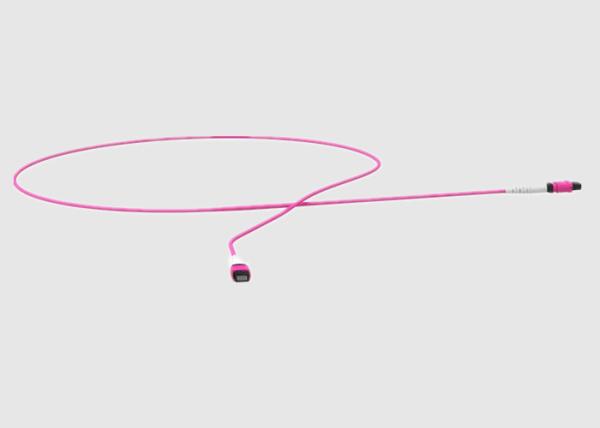

OM3, OM4 3.0mm, 3.6mm Round Cable 400G 16F MPO Pre-terminated Jumper Cable


Basic Information:

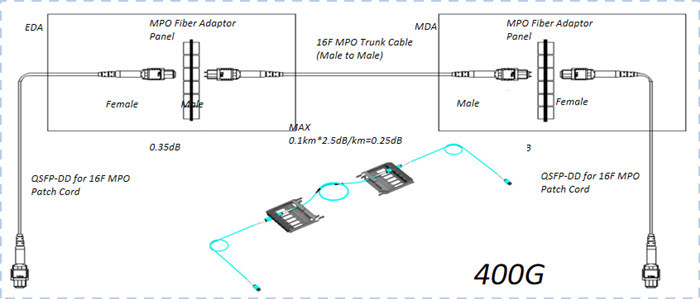

The OSFP-SR8 or MPO jumper with the 16F MPO connector is used for the connection between the OSFP-SR8 400G optical transceiver module in the data center.

It can fully meet the harsh high-speed network with Low insertion loss, high return loss by using the high-quality cable and MPO components.

With high performance and ingrained simplicity, our Light-LINKSTM low-loss MPO Trunks are the foundation of simpler, faster, and superior pre-terminated fiber connectivity solutions supporting the data center.

Features&Benefits:

1. Smaller cable bending radius to save the space, facilitate ventilation and heat dissipation equipment by using 3.0mm, 3.6mm round cable
2. Meet the harsh high-speed network with Low insertion loss, high return loss
3. OM3, OM4, and other optical fiber are available according to the different requirements of the customers.
4. Eliminates the cost of field-termination
5. Eliminates termination errors, Minimize install time
6. Terminated with low loss 12 fiber MPO connectors
7. Available in OS2, OM3, OM4 with LSZH sheath
8. Available in lengths from 10mtrs up to 500mtrs

Specifications and Parameter:

16F MPO Fiber Optic Performance:

Geometric parameter of end-face:

Ordering Information:

16F Pre-terminated Jumper Cable Application:

1. Datacenter systems wiring
2. Head-end termination to a fiber"backbone"
3. Termination of fiber rack systems
4. Multi-floor deployment & Intra-building "backbones"
5. Datacenter

Geehe's Standards Compliance :

1. Low smoke (IEC 61034)
2. Halogen-free (IEC 60754-1)
3. Fire retardant (IEC 60332-3)
4. Corrosion-resistant (IEC 60754-2)
5. Compliant to TIA 604-5 and IEC 61754-7
6. Standards ISO/IEC 11801 / EN 50173-1 / TIA-568C.0
7. Data Center EN 50173-5 / ISO/IEC 24764/ TIA-942
8. Ethernet IEEE 802.3; 10/40/100GbE
