ST Fiber Pigtail 50/125 1U Face Plate 12 Fibers Rack-Mounted Panel
Kit
Basic Information:

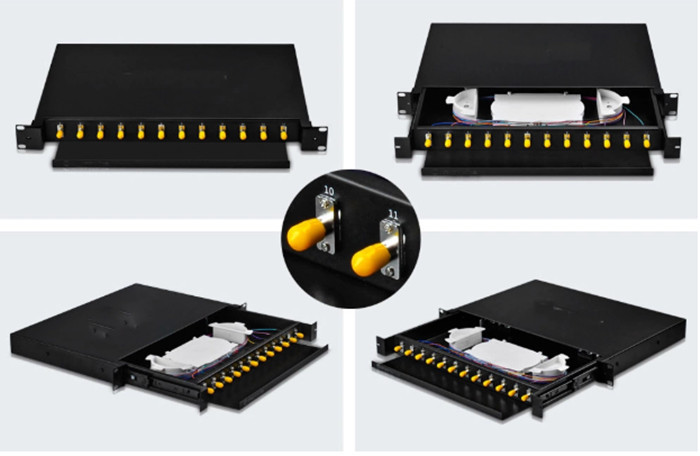

Pre-Loaded Fiber Patch Panel Kits include a 1U Fiber Optic Patch
Panel loaded with Adapter Plates and a Fiber Optic Splice Tray,also
included is a pack of Splice Sleeves and a pack of applicable Fiber
Optic Pigtails. Any unused adapter plate slots are covered with a
blank plate to protect the insides of the patch panel.
Geehe's ST Pigtails is Singlemode, and Yellow for SM APC. Each panel has included within
it a set of fixing brackets, and a cable management pack which
includes cable entry glands, cable ties, splice holders, cage nuts
and screws are also provided.
Patch Panel Wall Mount Benefit& Feature:
- 19" 1U Rack Mount Patch Panel with Splice Trays 12 ports
- Port identification numbers
- Pack of Splice Sleeves
- Pull-out design for easy fiber and splice access
- Minimum bend radius of fibers and strain relief for all entry cable
- Cable glands to secure the incoming fiber allows min movement
- 1U and 2U versions (12, 24, 36 and 48 port capacity)
- Sliding drawer on ball-bearing runners
Patch Panel Wall Mount Application:
Telecommunication networks
FTTH
LAN, WAN, CATV networks
Active device termination
Broadband
EDFA/WDM System
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 |
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 |
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 |
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 |
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 |
| PDL@ 1310/1550 nm (dB) | ≤0.3 |
| Input Power (mW) | 250max |
| Operating Temperature (℃) | -40~+85℃ |
| Storage Temperature (℃) | -40~+85℃ |
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube |
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18,On request |
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX |
| Configuration | 1U | 2U | 1U | 2U |
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 |
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) |
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium
A: Grade A
X: Follow Customer's Requirements | 13:1x3
14:1X4
…
232:2 X32 | 35:1310/1550nm | 01: 01:99
02: 02:98
……
50: 50:50 | 1:1 m
x: Follow Customer's Requirements | 25:250μM Fiber
09:900μM Loose Fiber | SC: SC/UPC SA: SC/APC
00:no connect | D:D
1U: J1
2U: J2 |
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension |
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back
reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer
box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is
subject to stringent testing standards
