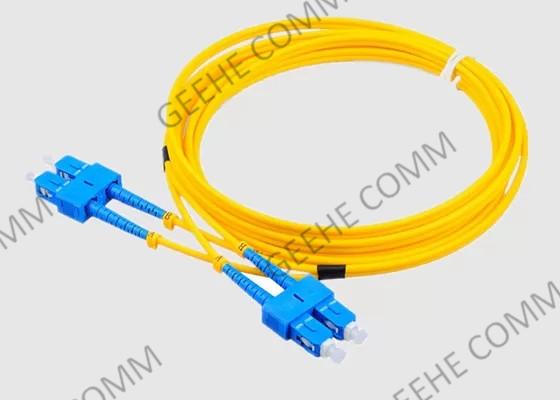

3.0mm PVC (OFNR) 10M Duplex Fiber Optic Patch Cord SC APC
1.Fiber Patch Cord Basic Introduction:
Duplex SC APC fiber optic patch cord is used to connect fiber optic
equipment to equipment or patch panel to equipment. It comprises of
a patch cable terminated with SC APC fiber optic connectors at both
ends.
Cost-effective solution that provides high bandwidth and
transmission rates over longer distances. The patented injection
molding process provides each connection greater durability in
resisting pulls, strains, and impacts from cabling install.
2. Fiber Optic Patch Cord SC To SC
- SC-SC Duplex Multi Mode Patch Cord, UPC Polish
- High speed and legacy networks
- The different connector performance range for a specific
application
- Low insertion loss &High return loss
- Hight realiability&stability
- Connectors compliant with Telcordia GR-326
- Mechanical performance compliant with IEC 61754-4
- RoHS compliant - Riser, Plenum, and LSZH rated cables available
- Good protection with dust cap
- 3-5 days delivery for trial order and bulk order
Commerical Standards
- North American: ANSI/TIA-568-C.3
- ANSI/ICEA S-83-596
- Telecordia GR-409
- European: EN 50173 2nd Edition
- International: ISO/IEC 11801
3.DuplexSC To SC Patch Cord Application:
- CATV
- Active device termination
- Telecommunication networks
- Metro and Local Area Networks(LANs)
- Data Processing networks
- Premise installation
4.Specification&Technology Parameters
| Parameters | Value |
| Connector Type | LC/UPC,LC/UPC |
| Center Wavelength(nm) | 1310 or 1550 |
| Max.Insertion Loss(dB) | 0.3 |
| Min.Extinction Ratio(dB) | 23 |
| Min.Return Loss(UPC) (dB) | 50 |
| Min.Return Loss(APC) (dB) | 60 |
| Key Orientation | Slow Axis |
| Axis Alignment(deg) | ±3 |
| Operating Temperature(℃) | -20~+70 |
| Storage Temperature(℃) | -40~+85 |
| FIber Type | PM Panda Fiber |
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER
is 2dB lower.
* The default connector key is aligned to the slow axis.
5. Fiber patch cord SC Specification& Technology Parameter:
| Parameter | Unit | Index |
| End-Face Type | | PC | UPC | APC |
| IL | dB | SM: ≤0.2； MM ≤0.1 |
| Repeatability | dB | ≤0.1 |
| interchangeability | dB | ≤0.2 |
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Without APC connector) |
| Mating Times | | ＞1000 |
| Operating Temperature | ℃ | -40~ +80 |
* EX:OFC-D-LA-LA-09-1-1.0
6. Fiber Optic Connectors are available
7. Geehe Factory Service
