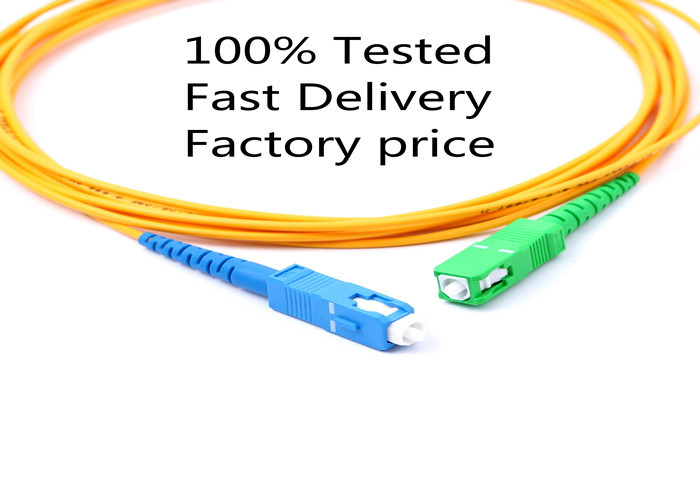

Indoor High-Reliability Yellow Jacket Fiber Optic Simplex Single
Mode Patch Cord SC-SC
1.Fiber Patch Cord Basic Introduction:
An SC/UPC to SC /UPC fiber optic patch cord is used to connect
fiber optic equipment to equipment or patch panel to equipment, UPC
stands for Ultra Physical Contact and represents one of the best
ways of polishing for fiber ferrules, assuring a return attenuation
greater than 50dB for single-mode connections.
Backed by Lifetime Warranty, our SC-SC Multimode Fiber Patch cable
is guaranteed to provide long-lasting dependability and top-quality
performance.
2.Fiber Optic Patch Cord SC To SC
- Free SC to SC SX SM adapter sample
- Good protection with dust cap
- SC connects with LC,FC,ST,MPO,MU, E2000, can be available
- Polishing Options:PC/UPC/APC
- Feature Connector with Ceramic Ferrules
- Low insertion loss & High return loss
- Connectors compliant with Telcordia GR-326-core
- Mechanical performance compliant with IEC 61754-4
- Factory-terminated and Tested
- Price-Competitive with America standard quality
3. Single Mode SC To SC Patch Cord Application:
- Building interconnections (campus LAN)
- Connector end in optical distribution boxes and termination boxes
- Cross-connect in the outdoor closet
- Fiber patch panels within communications closets
- Links between Internet electronic equipment (SFP module, Switch,
OLT, ONU, etc.), Cable TV optical equipment (Transmitter, EDFA,
Node, etc.)
4.Specification&Technology Parameters
| Parameters | Value |
| Connector Type | LC/UPC,LC/UPC |
| Center Wavelength(nm) | 1310 or 1550 |
| Max.Insertion Loss(dB) | 0.3 |
| Min.Extinction Ratio(dB) | 23 |
| Min.Return Loss(UPC) (dB) | 50 |
| Min.Return Loss(APC) (dB) | 60 |
| Key Orientation | Slow Axis |
| Axis Alignment(deg) | ±3 |
| Operating Temperature(℃) | -20~+70 |
| Storage Temperature(℃) | -40~+85 |
| FIber Type | PM Panda Fiber |
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER
is 2dB lower.
* The default connector key is aligned to the slow axis.
5. Fiber patch cord SC Specification& Technology Parameter:
| Parameter | Unit | Index |
| End-Face Type | | PC | UPC | APC |
| IL | dB | SM: ≤0.3；MM ≤0.1 |
| Repeatability | dB | ≤0.1 |
| interchangeability | dB | ≤0.2 |
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Without APC connector) |
| Mating Times | | ＞1000 |
| Operating Temperature | ℃ | -40~ +80 |
* EX:OFC-D-LA-LA-09-1-1.0

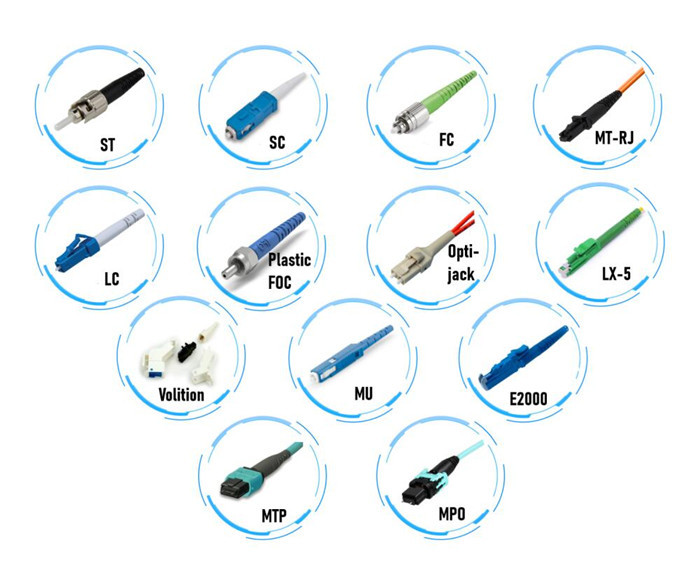

6. More connectors are available
