LC PC / UPC OM3 Aqua Multimode Optic Fiber Adapter Connector
Without Flange
1. Product Overview:
Fiber optic adapters that are classified into standard adapters are
the most common type of fiber optic adapters that are utilized in
the market such as FC fiber optic adapter, SC fiber optic adapter,
ST fiber optic adapter, and LC fiber optic adapter. Standard fiber
optic adapters are available in a number of variations like simplex, duplex, and even quad duplex supporting a different number of optical fibers.
Geehe Optical fiber adapters (coupling pieces) are used to connect optical fiber patch cables
with pigtails. Our adapters are high-quality products with a 100%
ceramic ferrule which, through an adapter, can be equipped with
various attenuators.
2. You Decide For Fiber Optic Features:
- Various types of single-mode (APC, PC) and multi-mode (OM1, OM2,
OM3 or OM4) adapters for various areas of application
- Adapters for SC/APC, LC/APC, E2000/APC 8 degrees, SC/PC, LC/PC and
MU/PC
- Attenuators of 1-25 dB available (LC, ST, SC, FC)
- Adapters with low loss are also available with valve
- Attenuators of 1-25 dB available (LC, ST, SC, FC)
- Pigtails, patch cables, and optical fiber drawers are also
available
- Adapters with low loss are also available with valve
- Flammability: UL94 V-0 Grade
- RoHS directive compliance
3. Fiber Optic Adapter Applications:
- Fiber Optic Transmission Network
- Cable TV network
- Optical Fiber Lan
- Optical fiber testing instrument
- ODF, rack-mounted, and wall-mounted optical fiber wiring unit
4. Optic Adapter Specification & Technology Parameters:
| parameter | SC, FC, ST, LC, MU, ST |
| End-face | APC/UPC/PC |
| Mode | Single-mode & multi-mode |
| Sleeve | Zirconia ceramic, phosphor bronze |
| Insertion loss (dB) | ≤0.2 |
| Exchangeability (dB) | ≤0.2 (connect randomly) |
| Tensile strength (dB) | ≤0.2 (0~100N) |
| Vibration (dB) | ≤0.2(5~50Hz, 1.5mm amplitude) |
| Temp. Range (dB) | ≤0.2(-40~80℃, 21 cycles)
|
5. Ordering Information:
EX: OFA-D-FC-APC-Z-N-N
| OFA | -X | -XX | -XX | -XX | -X | -X |
| S: simplex D: duplex | SC FC ST LC MU ST | APC UPC PC | Z: Zirconia ceramic, P: phosphor bronze | W: with flange N: no flange | W: with shutter N: no shutter |
| Fiber mode | Connector Type | Connector Type | Sleeve | Flange type | Shutter type |
| Parameter | Unit | Value |
| Connector | / | FC ST SC LC |
| Sleeve | / | Zirconia |
| Insertion Loss | dB | ≤0.20(Plug≤0.30) |
| Repeatability | Time | ＞1000
|

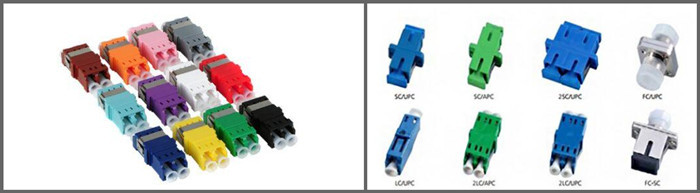

6.More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back
reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer
box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is
subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter
8,900 pcs/ Day.
