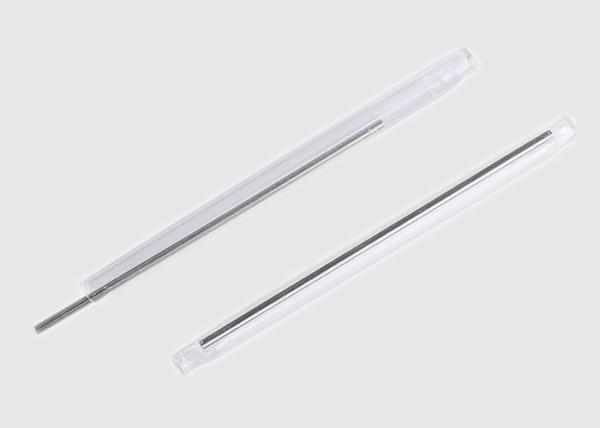

Fusion Splice Heat Shrink Protector Sleeves With 60mm Steel Support
Brief Introduction:
Fusion-Protection Sleeves: This consists of cross-linked polyolefin, Hot fusion tubing, and
Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection
to optical fiber splices.
Easily operating to the optical fiber during installation without
damaging and clear sleeve make it easy to detect splice before the
shrinkage process.
the sealing structure makes the splice free from the influence of
temperature and humidity in any environment.
The Shrinkable sleeve is applied to the optical fiber closure to
fix and protect the fiber optic when splicing.
Fiber Splice Heat Shrink Characteristics:
-- Whole length 60mm
-- Outer diameter after recovery: OD 2.4 mm +/- 0.1mm
-- Hole diameter before recovery: OD 1.5 mm
-- Pin material: SS304 (high-quality stainless steel)
-- Pin diameter: OD 1.0 mm
-- Minimum installation temperature: 110°C
-- Max installation time: 60 seconds
-- Standard color: Clear / transparent
-- Compliant norms: UL224,MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006
Specification & Characteristics:
| Project | Test Method | Typical Data |
| The Tensile Strength | ASTM d 2671 | 18Mp |
| Tensile Rate | ASTM d 2671 | 700% |
| Density | ISO R1183D | 0.94g/cm3 |
| Compressive Strength | IEC 243 | 25KV/mm |
| Volume Resistivity | IEC 243 | 1015Ω |
| The Dielectric Constant | IEC 243 | 2.5 |
| The Longitudinal Shrinkage Rate | ASTM d 2671 | ≤5% |
| The Rate Of Partial Wall | ASTM d 2671 | 10% |
| Size | Routine | 15,25,35,40,43,45,50,60 |
| Unconventional | Micro 15mm, 8 core 24mm, 12 core 40mm |
| Operating Temperature | (-40 -+85℃) |
| Initial Shrinkage Temperature | 120℃ |
Fiber Fusion Splice Heat Shrink Application:
1. Fusion splicing
2. Fiber cable protecting
3. FTTH system
4. Rack-mount & Wall-mount terminal box
5. Optical fiber switch box and so on continue protection
