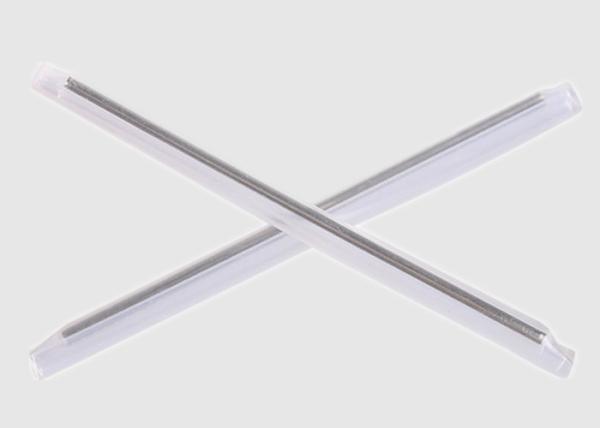

Fast Delivery 25mm φ1.8 Fiber Shrink Tube, Fiber Optic Protection
Sleeve
Basic Information:
Heat Shrinkable Fiber Optic Splice Sleeves Tube is Consist of
cross-linked polyolefin, Hot fusion tubing, and Stainless
Reinforcing Steel Rod which keep optic transmission properties of
optical fiber and enhance the protection to optical fiber splices.
Easily operating to the optical fiber during installation without
damaging and clear sleeve make it easy to detect splice before
shrinkage. The sealing structure makes the splice free from the
influence of temperature and humidity in a special environment.
This protector provides mechanical reinforcement at the joint point
and maintains the optic transmission properties of the fiber optic
cable.
Fiber Splice Heat Shrink Characteristics:
- Simple operation, reducing damage to the fiber during installation
- Transparent casing for a clear view of the fiber connector status
- Fast shrinkage and construction conveniently
- Extended liner length prevents contact between the fiber and their
backbone
- Clear sleeve design permits easy centering of splice before heating
- Reinforce and protects the splice
- One-piece design with hot fusion insert for sealing against
moisture and other contaminants
Specification & Characteristics:
| Project | Test Method | Typical Data |
| The Tensile Strength | ASTM d 2671 | 18Mp |
| Tensile Rate | ASTM d 2671 | 700% |
| Density | ISO R1183D | 0.94g/cm3 |
| Compressive Strength | IEC 243 | 25KV/mm |
| Volume Resistivity | IEC 243 | 1015Ω |
| The Dielectric Constant | IEC 243 | 2.5 |
| The Longitudinal Shrinkage Rate | ASTM d 2671 | ≤5% |
| The Rate Of Partial Wall | ASTM d 2671 | 10% |
| Size | Routine | 15,25,35,40,43,45,50,60 |
| Unconventional | Micro 15mm, 8 core 24mm, 12 core 40mm |
| Operating Temperature | (-40 -+85℃) |
| Initial Shrinkage Temperature | 120℃ |
Fiber Fusion Splice Heat Shrink Application:
1. Fusion splicing
2. Fiber cable protecting
3. FTTH system
4. Rack-mount & Wall-mount terminal box
5. Optical fiber switch box and so on continue protection
6. All types of fiber cables
More Types Of Fiber Optical Fusion Splice:
| Item | Description | Sleeving | Outer tube (Heat-shrinkable) |
| Diameter (Before shrink) | Diameter (After shrink) | Length | Inner Diameter | Outside diameter | Length |
| 1 | Fiber Protection Sleeves _11mm_φ1.9_Without Strength Member | 1.9±0.1 | 1.25±0.1 | 11±0.1 | 1.4±0.1 | 1.9±0.1 | 11±0.1 |
| 2 | Fiber Protection Sleeves _15mm_φ1_with Strength Member | 1.8±0.1 | 1.4±0.1 | 15±0.1 | 1.5±0.1 | 1.8±0.1 | 15±0.1 |
| 3 | Fiber Protection Sleeves _20mm_φ3_Without Strength Member | 3.9±0.1 | 2.5±0.1 | 20±0.1 | 3.4±0.1 | 3.9±0.1 | 20±0.1 |
| 4 | Fiber Protection Sleeves_20mm_φ4_Without Strength member | 4.4±0.1 | 3.0±0.1 | 20±0.1 | 4.0±0.1 | 4.4±0.1 | 20±0.1 |
