8F OM4 2mm OD MPO(F)-MPO(F) type B OFNP low loss 13m
Brief Description:
* Insertion loss type available in Standard, Elite / Low Loss
* Fiber count available in 8, 12, 24, 48 cores
* MTP/MPO connector type available in:Male, Female, Male to Female
* Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
* Cable jacket type available in OFNR, LSZH, OFNP
* Multi-fiber connector types are available in MTP, MPO with APC or
PC polishing type
* Cable length available in 1 to 999 meters, customization
* Cable type available in round, ribbon
* Improve and simplify fiber routing, decrease fiber management
space
* Conforms to IEC-61754-7; EIA/TIA-604-5 (FOCIS 5) standards.
Main Features& Benefits:
* MPO Connector with Angled Boot
* Ideal for round, oval and bare ribbon fiber cable assembly
* High-performance IL & RL
* Housing can be removed for re-polishing
* Can be unplugged from the adapter with push-pull tab
* Available for 45-degree, 90-degree, and flexible boot
* High mechanical and thermal resistance
Specifications and Parameter:
Fiber Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 |
| Return Loss (dB) | ≥60 for APC
(8 angle polish) | ≥20 for PC |
| ≥50 for PC | — |
| Male/Female(dB) | Male:with pins,Female:without pins |
| Tensile Strength (dB) | ≤0.3 ( max 66N ) |
| Vibration (dB) | ≤0.3 ( 10-55Hz ) |
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) |
Geometric parameter of end-face:
| Item | Spec |
| SM | MM |
| RX(mm) | MIN 2000 |
| RY(mm) | MIN 5 |
| Fiber Height (nm) | 1000-3500 |
| Max. diff. Height all (nm) | MAX: 500 |
| Max. diff. Height adj (nm) | MAX: 300 |
| X-Axis Angle ( °) | -0.2 ~ 0.2 |
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2
APC: 7.8 ~ 8.2 | -0.2 ~ 0.2 |
| Core Dip | N/A | -100 ~ 200 |
Ordering Information:
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1
A2: G657A2
M3: OM3
M4: OM4
M5: OM5 | LZ: LSZH
NP: OFNP
NR: OFNR | FF: MPO /MPO(female to female )
MF: MPO/MPO (male to a female)
MM: MPO/MPO (male to male) | L: Low loss
B: Standard loss | 12:1×12 core
48:4×12 core
72:6×12 core
96:8×12 core | A: TIA568 through-type
B: TIA568 Reverse type
C: TIA568 cross-type | 5M to
50M |
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
Application:
Applications & Associated Standards
Array trunk cables
Array fiber to single fiber fanouts and cassettes
High fiber density card edge access
Optical switching interframe connections

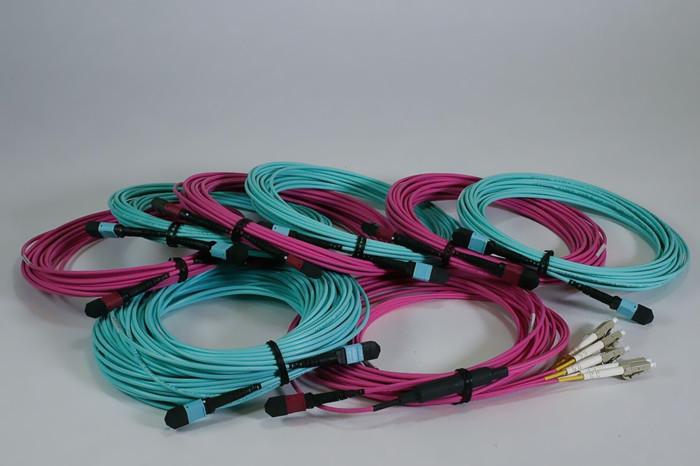

MPO Picture:
