Fiber Patch and Splice Panel Slide-Out 1U 3 Adapter Panel Capacity
Basic Information:
This rack mounts fiber patch panel is a 1 Rack Unit (1RU), 3
termination panels, 19" and 23" rack mount fiber distribution unit
designed to support patching and splicing in one unit, up to 36
fibers. The fiber housing has a slide-out master panel with an
integrated tray stop to prevent overextension of fiber cables. The
drawer slides are nylon which makes the drawer slide in and out
easier. The fiber enclosure also has a two-piece top and a swell
latch door to allow for easy access to the adapter panels. The
FB23-5845RT3 is one of a family of units that support fiber
terminations in rack mount applications.
This rack mount fiber optic patch panel includes fiber optical OS2
Singlemode Pigtails (3 Meter), LGX ST adapter panels, and three 24
fiber splice trays. It also includes a smooth sliding drawer-type
pull-out system for easy installation and maintenance.
Fiber Patch Panels 24 port Benefit&Feature:
- Accommodates Up to 24 Fiber Ports

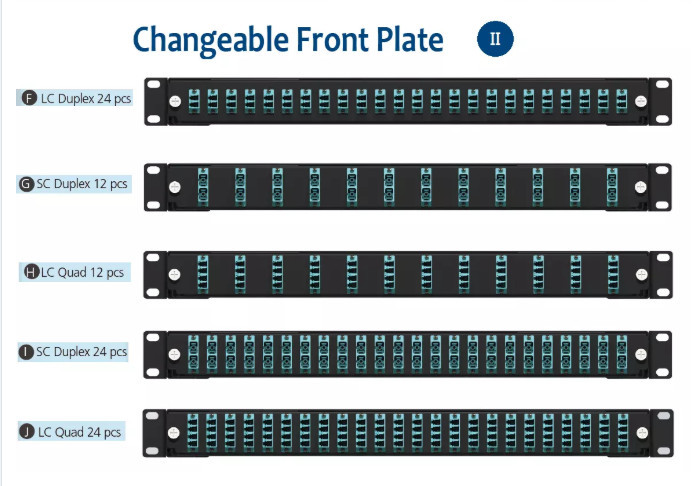

- Available with Various Fiber Termination Connectors
- Multiple Pigtail and Splice Tray Options Available
- Optional Key Lock Installed
- Used in Telecom Closets and Remote Distribution Terminals
- Singlemode sleeves are made from Zirconium Ceramic
- Every fiber coupler includes an individual dust cover
Fiber Patch Panels 24 port Application:
1) Telecommunications networks
2) FTTH
3) LAN, WAN, CATV netoworks
4) Active device termination
5) CCTV
6) IPTV
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 |
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 |
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 |
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 |
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 |
| PDL@ 1310/1550 nm (dB) | ≤0.3 |
| Input Power (mW) | 250max |
| Operating Temperature (℃) | -40~+85℃ |
| Storage Temperature (℃) | -40~+85℃ |
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube |
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18,On request |
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX |
| Configuration | 1U | 2U | 1U | 2U |
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 |
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) |
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium
A: Grade A
X: Follow Customer's Requirements | 13:1x3
14:1X4
…
232:2 X32 | 35:1310/1550nm | 01: 01:99
02: 02:98
……
50: 50:50 | 1:1 m
x: Follow Customer's Requirements | 25:250μM Fiber
09:900μM Loose Fiber | SC: SC/UPC SA: SC/APC
00:no connect | D:D
1U: J1
2U: J2 |
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension |
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back
reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer
box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is
subject to stringent testing standards
4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan
