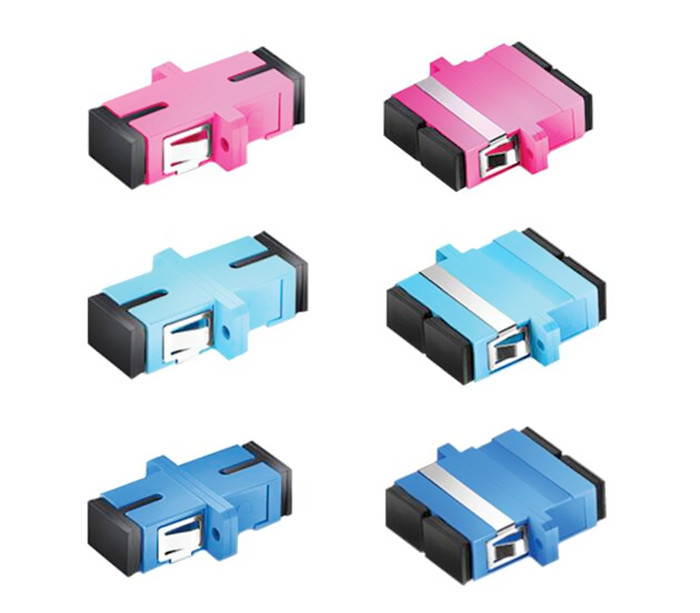

Single Mode Simplex Color Beige SC UPC Fiber Optic Adapter With
Flanges
1. Product Overview:
Geehe Optical Fiber Mating Adapter/Sleeve is used to connect two
connectorized fibers together with low loss. This model has an
SC/APC female fiber connector on each end. It Can be used for
single-mode or multi-mode connectorized fibers.
This coupler provides a solution for extending a current run of
fiber optic cabling. This coupler is constructed from high-grade
plastic and has been designed and engineered for durability and
long life.
2. SC Optical Cable Adaptor Feature and Benefits:
- Simplex and Duplex Assemblies
- Beige adaptor supplied with phosphor bronze sleeve.
- Low insertion loss and improved reconnect ability.
- High precision alignment sleeve.Any Connector: SC/UPC, SC/APC, ST,
FC/UPC, FC/APC, LC/UPC, LC/APC, MT-RJ, etc.
- All assemblies are oven cured
- Shorts Boots are available
- All Assemblies are machine polished
- Assemblies are checked for optical clarity
- Custom Labeling Available
- Dropshipping is available to any location specified
3. LC Fiber Optic Adapter Applications:
- High-speed transmission systems
- FTTx (FTTA, FTTB, FTTC, FTTO, FTTH,..)- CATV
- Telecommunication networks
- Test equipment
- Metro
- Local Area Networks(LANs)
- Data processing networks
4. Optic Adapter Specification & Technology Parameters:
| Item | Value | Unit |
| Sleeve Material | Ceramic | / |
| Insertion Loss | Male | Typ. | ≤ 0.5 | dB |
| Min. | ≤ 0.2 | dB |
| Female | Typ. | ≤ 0.3 | dB |
| Min. | ≤ 0.2 | dB |
| Return Loss | UPC | ≥50 | dB |
| APC | ≥60 | dB |
| PC | ≥35 | dB |
| Insertion Loss Max. | 0.2 | dB |
| ∆ IL | Uniformity | ＜0.2 | dB |
| Durability (1000 times) | ＜0.3 | dB |
| Proof Test | 40N,10 minute | N |
| Insertion And Withdrawal Force | ≤19.6N | N |
| Operating Temperature | -25~+70 | ℃ |
| Storage Temperature | -25~+70 | ℃ |
| Protocol Standards | IEC60874-10/61300/TIA/EIA568 |
5. Ordering Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex
D: Duplex | SC
FC
ST
LC
MU | APC
UPC
PC | Z: Zirconia ceramic P: Phosphor Bronze | W: With Flange
N: No Flange | W: With shutter
N: No shutter |
| Fiber Mode | Connector Type | Connector Type | Sleeve | Flange Type | Shutter Type |

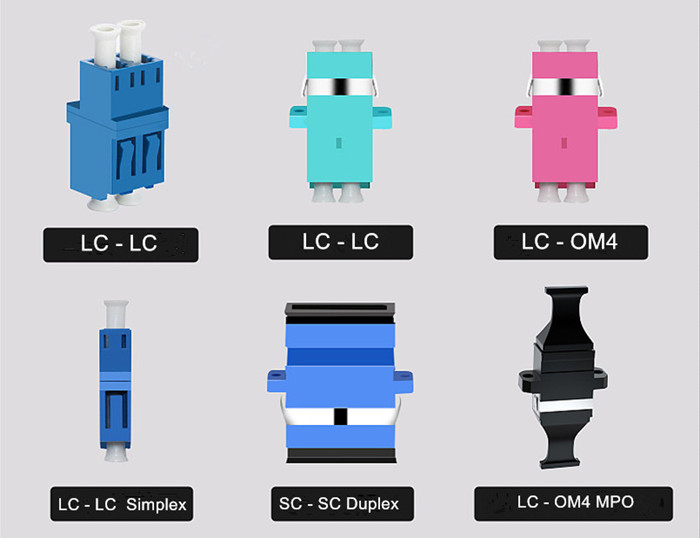

6. More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back
reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer
box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is
subject to stringent testing standards
4) 24/7 After Service
Any questions about our products welcome to feedback us, we will
reply with 1 hour and give solve solutions within 2-3 hours.
