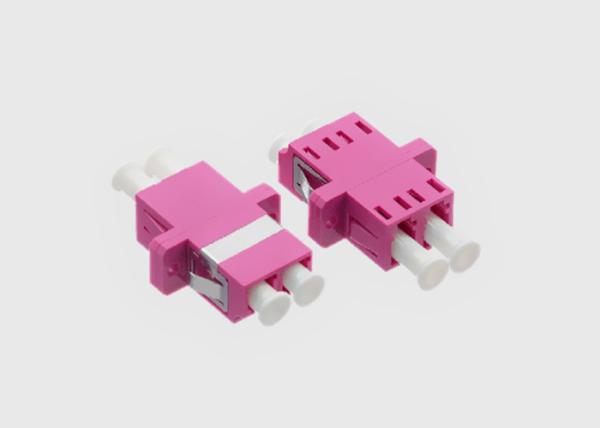

LC/UPC Fiber Optic Adapter Duplex MM OM4 Flanged Violet Mikrolink
OM4 Fiber
1. Product Overview:
The LC OM4 Multimode adaptor is used to join two connectors
together and is usually mounted in a fiber optic patch panel, fiber
optic breakout box, and more recently in fiber optic wall outlets
where a fast fiber link is required in an office environment. The
adapters are suitable for fiber distribution units like splice
panels and wall enclosures. Each fiber adapter fits securely into
designated slots and is used to couple the fiber connections
together securely inside of a fiber distribution unit.
The adaptors are supplied in Duplex or Quad versions.
The LC adaptor is a proven small form factor design, enabling a
greater number of fibre ports where space is limited.
2. Optical Cable Adaptor Feature and Benefits:
- Compliant with: IEC, Telcordia
- Convenience and ease of handling
- Optical performance 100% factory tested
- Flange or threaded mounting type
- Ceramic/Zirconia or phosphorous bronze sleeves
3. Fiber Optic Adapter Applications:
- FTTH, LAN, PON & Optical CATV
- Local ring net
- The optical fiber communication system
- Optical fiber test equipment
- Optical fiber sensor
4. Optic Adapter Specification & Technology Parameters:
| parameter | LC |
| End-face | UPC/PC |
| Mode | Single-mode |
| Sleeve | Zirconia ceramic |
| Insertion loss (dB) | ≤0.2 |
| Exchangeability (dB) | ≤0.2 (connect randomly) |
| Tensile strength (dB) | ≤0.2 (0~100N) |
| Vibration (dB) | ≤0.2(5~50Hz, 1.5mm amplitude) |
| Temp. Range (dB) | ≤0.2(-40~80℃, 21 cycles) |
| Repeatability | ≤0.2dB |
| Service life | ＞1000 |
| Plug | 1-2.5 N |
5. Ordering Information:
EX: OFA-D-FC-APC-Z-N-N
| OFA | -X | -XX | -XX | -XX | -X | -X |
| S: simplex D: duplex | SC FC ST LC MU ST | APC UPC PC | Z: Zirconia ceramic, P: phosphor bronze | W: with flange N: no flange | W: with shutter N: no shutter |
| Fiber mode | Connector Type | Connector Type | Sleeve | Flange type | Shutter type |
| Parameter | Unit | Value |
| Connector | / | FC ST SC LC |
| Sleeve | / | Zirconia |
| Insertion Loss | dB | ≤0.20(Plug≤0.30) |
| Repeatability | Time | ＞1000
|
6. More Options Optic Adapters:
7. Wuhan Geehe Comm Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back
reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer
box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is
subject to stringent testing standards
4) Big Production Capacity
800 Skilled workers and 5 Main production Lines, the optic adapter
8,900 pcs/ Day.
