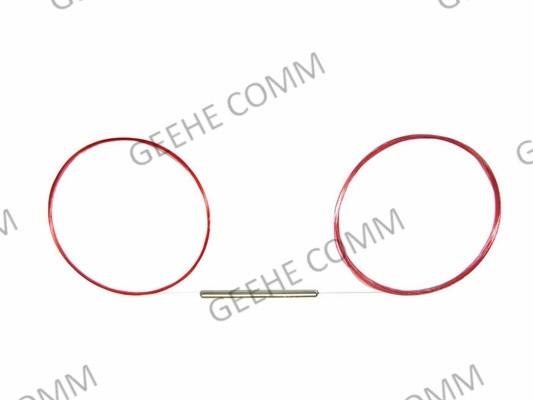

Mini Size 1×4 Fiber Optic Couplers
Optic Coupler Brief Introduces:
FBT Couplers(Splitter) utilizes precision technology to combine or
distribute light from single/multiple inputs to single/multiple
outputs bi-directionally. They are designed for power splitting and
tapping in telecommunication equipment, CATV network, and test
equipment.
1×4 FBT coupler is an optical splitter that uses the Fused Biconic
Taper (FBT) technique. The FBT technique is a well-known industry
technology for splitting optical power and/or splitting
wavelengths. The fused fiber coupler is created through a process
of fusing two bare fibers like an “X” and pulling the fused section
to achieve the desired optical characteristics. FBT couplers are
fused in tree structures to combine optical splitting effects to
create power ratio output of 1×N or 2×N, where “N” is the number of
desired outputs.
1× 2 Fiber Optic Coupler Features& Benefits:
1) Low insertion loss
2) Low PDL
3) Compact design
4) Good channel-to-channel uniformity
5) High directivity
6) High reliability and stability
7) Various coupling ratios are available
1×4 FBT Coupler Specification and parameter:
1X4 25x25x25x25 1525-1565nm small size WBC Technical Specification
for procurement of optical splitters Version:A/0 |
| Parameters | Unit | Specifications |
| Working Wavelength Range | nm | 1525-1565 |
| Insertion Loss (Over the whole wavelength range) | dB | 6.0-6.8 |
| Optical Return Loss | Min | dB | 50 |
| Uniformity | Max | dB | 0.6 |
| Directivity | Min | dB | 55 |
| Polarization Dependent Loss | Max | dB | 0.2 |
| Temperature Dependent Loss | Max | dB | 0.15 |
| Operating Temperature | ℃ | -5~ 75 | Max. Optical Power | mw | 500 |
| Storage Temperature | ℃ | -40 ~ 85 | Operating Humidity | % | 0 ~ 90 |
| Reliability Requirement | Compliant with GR-1209-CORE and GR-1221-CORE |
| Packaging Specifications |
| Package Dimension | Φ3.0×L48 or Φ3.0×L45 | Fiber Length | 1 ±0.1m |
| Fiber Type | Corning SMF28 ,or other fiber |
| Pigtail type | 250um bare fiber |
| Fiber color code | None. |
| Connectors | None. |
Notes: 1. Temperature-Dependent Loss is defined as the insertion loss
variation over the whole working temperature range. 2. The 1000 hours reliability report for 85°C, 85%RH or 75°C, 90%RH
should be provided.
|
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium
A: Grade A
X: Customization | 12:1x2
22:2x2 | 35:1310/1550nm | 01: 01:99
02: 02:98
……
50: 50:50 | 1:1 m
x: Customization | 25:250μM Fiber 09:900μM loose fiber | SC: SC/UPC SA: SC/APC
00: no connector | A: A
B: B
C:C |
| Grade | Port number | Operating wavelength | Coupling ratio | Fiber length | Fiber type | Connect type | Dimension |
EX:WBC-P-12-35-50-1-09-0-B
1×2 Fiber Optic Coupler Application:
FTTx Systems
LAN, WAN, and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
Optical communication system
Optical communication system
Optical power distribution system
Fiber optic sensors
Optical test system
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back
reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer
box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is
subject to stringent testing standards
4) Fast Delivery
With skilled and stable workers, all the order turnover is fast
than the competitors
5) Factory Audit
We cooperate with famous brands and Japanese customers, with 15
years of factory inspection experience and be familiar with the
whole inspect process by SGS
