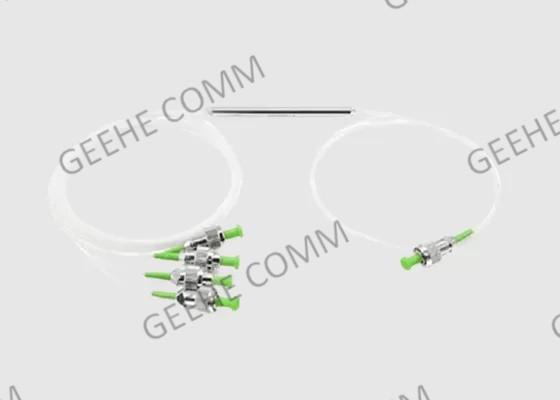

Single Mode Dual Window 1310& 1550nm 1×4 FBT Fiber Optic FC Coupler
Optic Coupler Brief Introduces:
Fiber Fused Couplers / Splitters include wideband fused fiber
couplers, polarization-insensitive miniature circulators, and fused
single-mode wavelength division multiplexers.
MMFC series multi-mode single-window wideband fused fiber couplers
are highly stable for multiport optical signal splitting. SWFC /
DWFC series fused single or dual window wideband fiber 1x2 (2x2)
couplers provide accurate optical signal coupling and splitting
over a wide bandwidth with high performance and high reliability.
MIOC 3- or 4-port polarization-insensitive miniature circulators
feature excellent optical characteristics over a wide wavelength
range. SWD fused single-mode wavelength division multiplexers are
manufactured using fused biconical taper technology.
1× 4 Fiber Optic Coupler Features& Benefits:
1) SWFC / DWFC:
Fused single or dual window wideband fiber 1x2 (2x2) couplers
Provides accurate optical signal coupling and splitting over a wide
bandwidth with high-performance and high-reliability
2) SWD:
Fused single-mode wavelength division multiplexers
Manufactured using fused biconical taper technology
3) MIOC:
3- or 4-port polarization-insensitive miniature circulators
Excellent optical characteristics over a wide wavelength range
4) MMFC:
Multi-mode single-window wideband fused fiber couplers
Highly stable for multiport optical signal splitting
Dual Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A |
| Operating Wavelength(nm) | 1310&1550 |
| Operating Bandwidth(nm) | 1310 ± 40nm,1550 ± 40nm |
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 |
Insertion Loss
(dB) | 50/50 | ≤3.3 | ≤3.5 |
| 40/60 | 3.70~4.40≤2.5 | 3.50~4.60/≤2.8 |
| 30/70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 |
| 20/80 | 6.80~7.40/≤1.2 | 6.50~7.70/≤1.2 |
| 10/90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 |
| 5/95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 |
| 3/97 | 14.60~15.50/≤0.3 | 13.60~16.05/≤0.4 |
| 2/98 | 16.60~17.90/≤0.25 | 15.60~18.20/≤0.3 |
| 1/99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 |
| PDL(dB) | ≤0.1 | ≤0.15 |
| Return Loss(dB) | ≥50 | ≥45 |
| Directivity(dB) | ≥55 |
| Operating Temperature(℃) | -40 ~ +85 |
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium
A: Grade A
X: Customization | 12:1x2
22:2x2 | 35:1310/1550nm | 01: 01:99
02: 02:98
……
50: 50:50 | 1:1 m
x: Customization | 25:250μM Fiber 09:900μM loose fiber | SC: SC/UPC SA: SC/APC
00: no connector | A: A
B: B
C:C |
| Grade | Port number | Operating wavelength | Coupling ratio | Fiber length | Fiber type | Connect type | Dimension |
EX:WBC-P-12-35-50-1-09-0-B
2×2 FIber Optic Coupler Application:
FTTx Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
Optical communication system
Optical communication system
Optical power distribution system
Fiber optic sensors
Optical test system
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back
reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer
box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is
subject to stringent testing standards
4) Fast Delivery
With skilled and stable workers, all the order turnover is fast
than the competitors
5) Factory Audit
We cooperate with famous brands and Japanese customers, with 15
years of factory inspection experience and be familiar with the
whole inspect process by SGS
